Dell OptiPlex XE2 - Removing the Input;Output (I;O) Panel

Removing the Input/Output (I/O) Panel
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) cover
b) front bezel

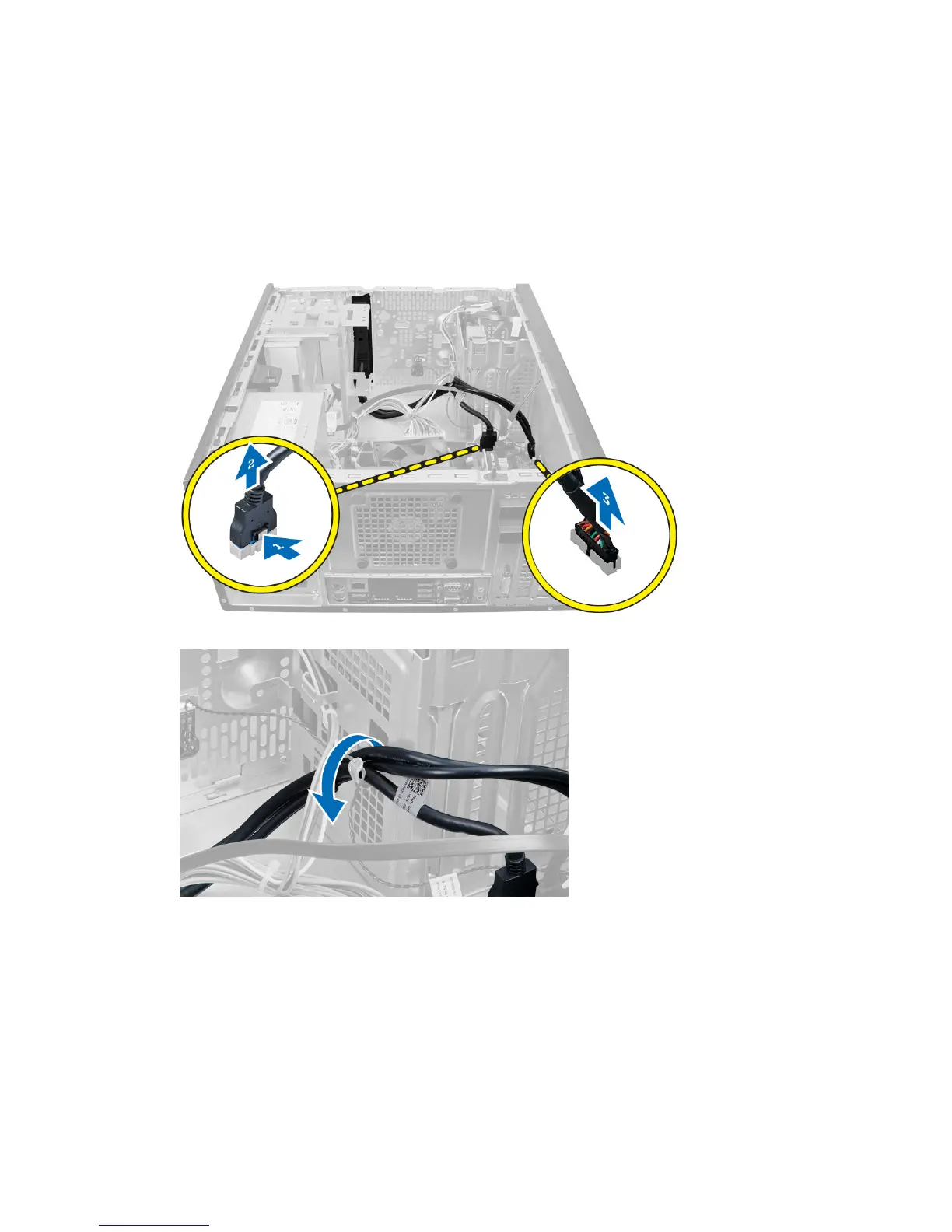

3. Disconnect the I/O panel, data, and USB data cables from the system board.
4. Unthread and release the I/O Panel, data cable and USB data cable from the clip on the computer.
5. Remove the screw that secures the I/O panel to the computer.
28
