Steps

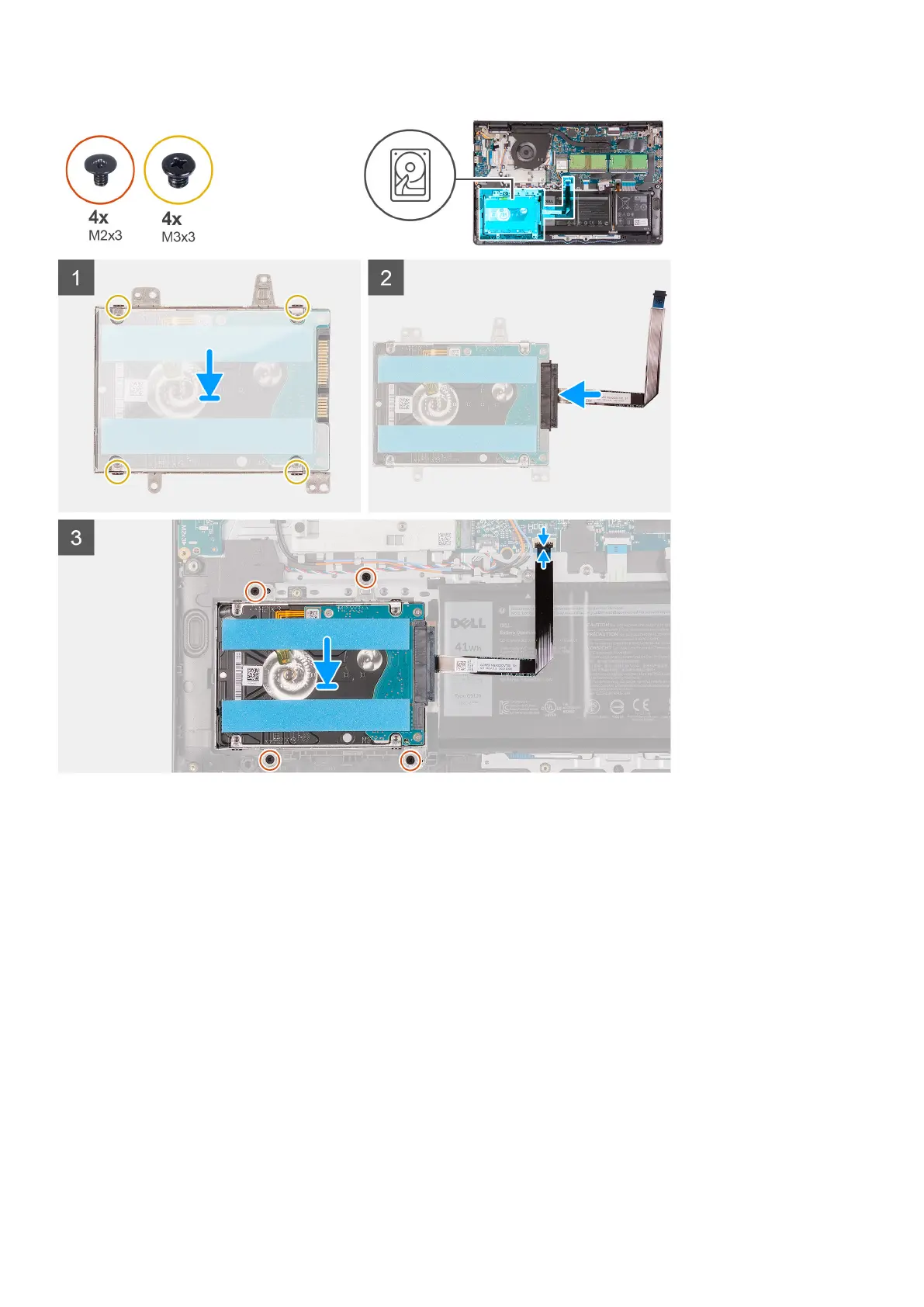

1. Slide and install the hard-drive into the hard-drive bracket.
2. Install the four (M3x3) screws to secure the hard drive to the hard-drive bracket.
3. Connect the interposer to the hard drive.
4. Align and place the hard-drive assembly on to the palm-rest and keyboard assembly.
5. Replace the four (M2x3) screws to secure the hard drive assembly to the palm-rest.
6. Connect the hard drive cable to the system board and close the latch to secure the cable.
Next steps
1. Install the battery.
2. Install the base cover.
3. Exit service mode.
4. Install the SD card.
5. Follow the procedure in after working inside your computer.
Removing and installing components
