4. Install the WLAN card.
5. Install the base cover.
6. Exit service mode.
7. Install the SD card.
8. Follow the procedure in after working inside your computer.
Display panel
Removing the display panel
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD card.
3. Enter service mode.
4. Remove the base cover.
5. Remove the WLAN card.
6. Remove the display assembly.
7. Remove the hinge caps.
8. Remove the display bezel.
About this task

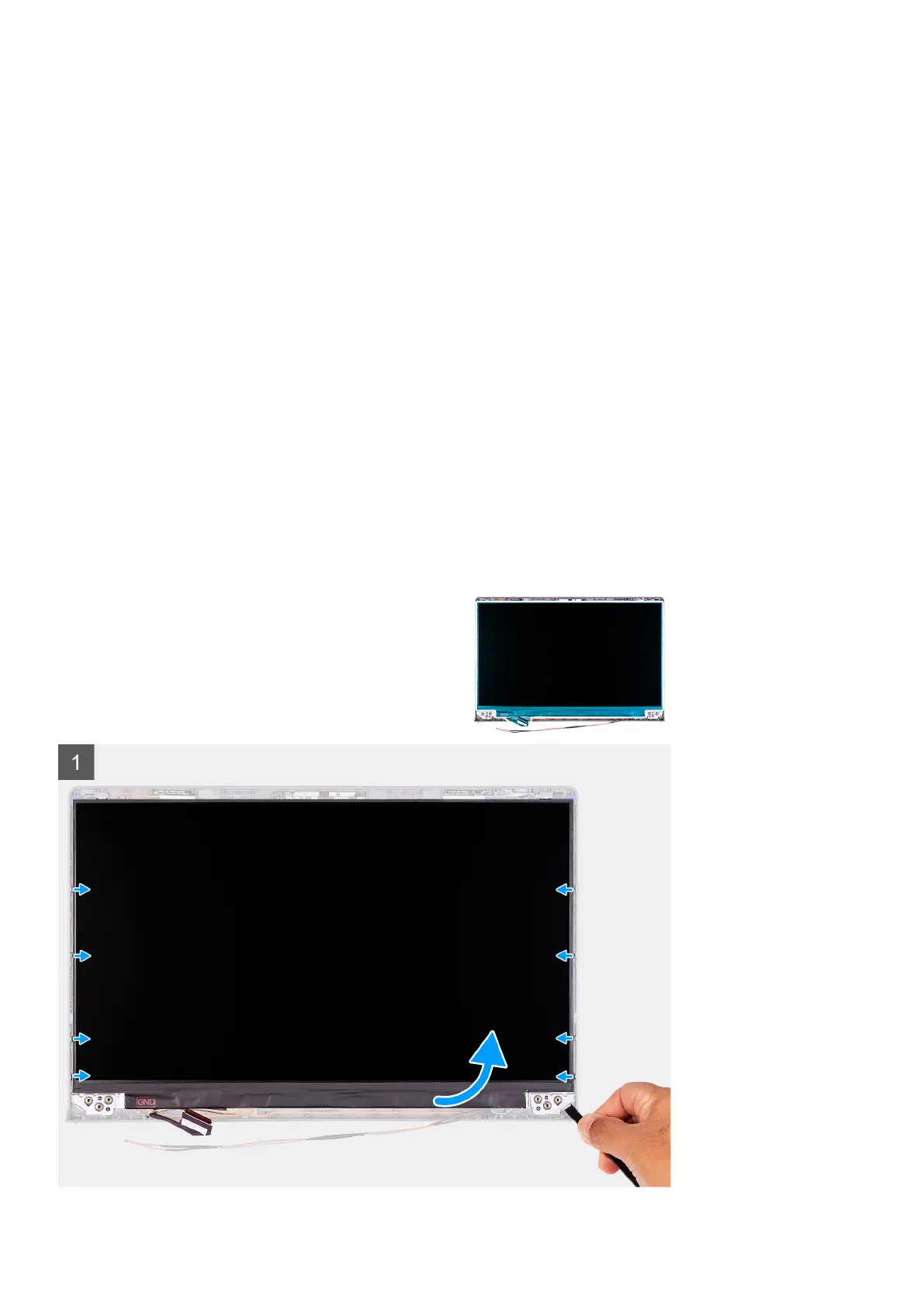

The following images indicate the location of the display panel and provides a visual representation of the removal procedure.
62
Removing and installing components
