Steps

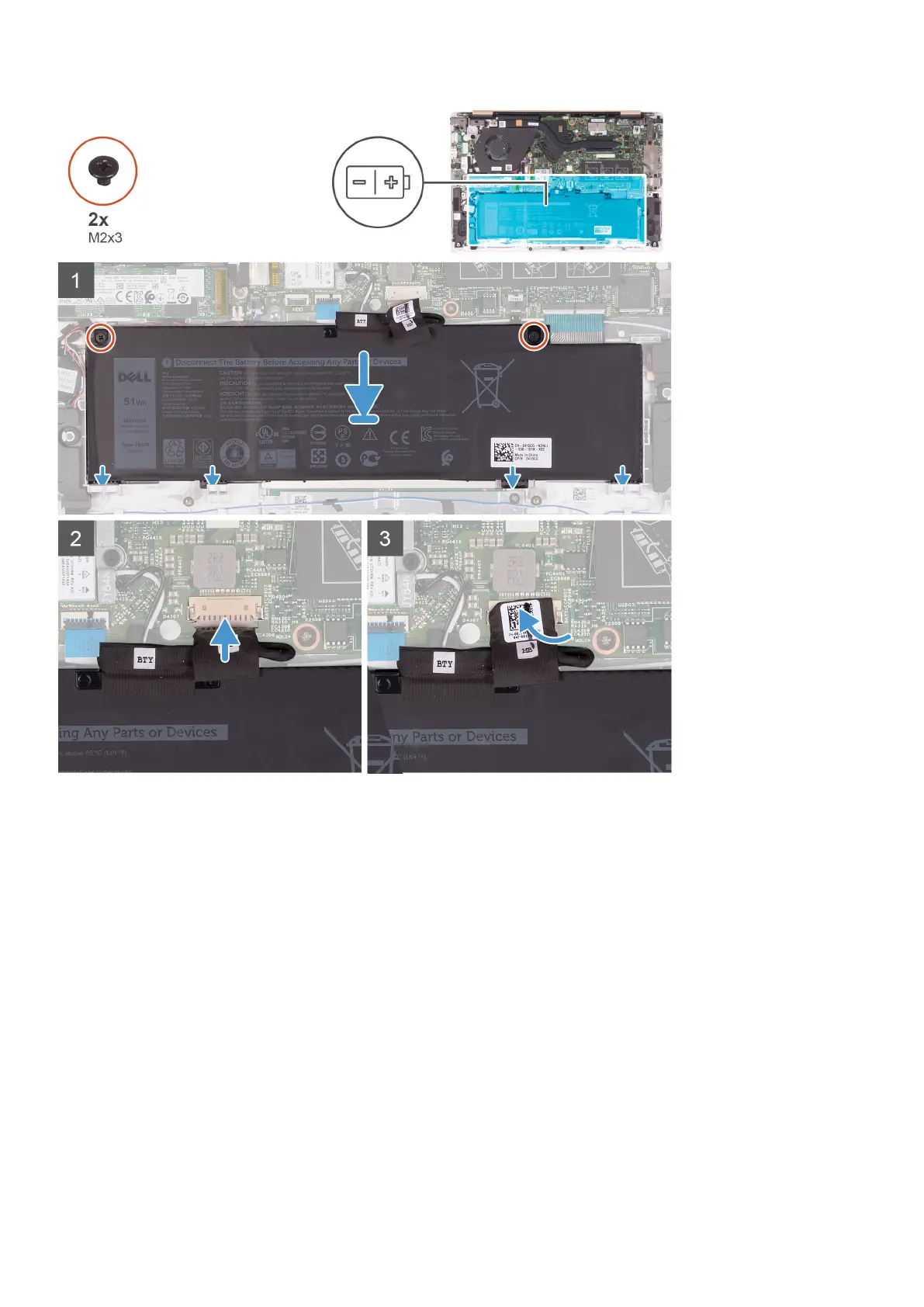

1. Align the four tabs on the battery into the slots on the palm-rest and keyboard assembly and insert the battery into place.
2. Align the screw holes on the battery with the screw holes on the palm-rest and keyboard assembly and place the battery on
the palm-rest and keyboard assembly.
3. Replace the two screws (M2x3) that secure the battery to the palm-rest and keyboard assembly.
4. Connect the battery cable to the connector on the system board.
5. Adhere the tape that secures the battery connector to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
16
Removing and installing components
