Steps

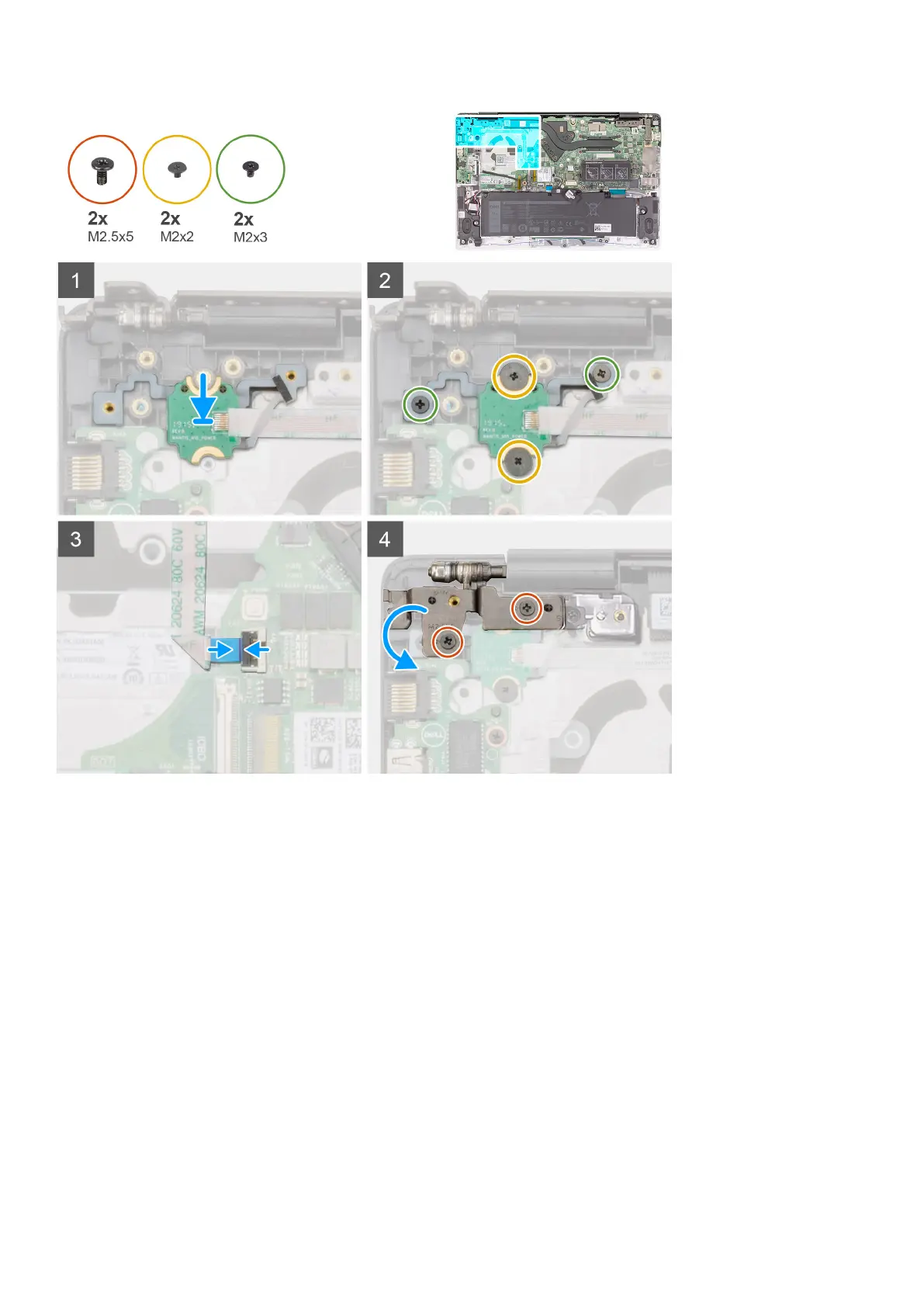

1. Align and place the power-button board into the slot on the palm-rest and keyboard assembly.
2. Replace the two screws (M2x2) and the two screws (M2x3) that secure the power-button board to the palm-rest and
keyboard assembly.
3. Adhere the adhesive tape above the power-button board.
4. Connect the power-button cable to the connector on the system board and close the latch.
5. Close the right display hinge and replace the two screws (M2.5x5) that secure the right display hinge to the palm-rest and
keyboard assembly.
Next steps
1. Install the fan.
2. Install the battery.
3. Install the base cover.
4. Follow the procedure in After working inside your computer.
Removing and installing components
47
