Dell P116G - Page 52

Steps

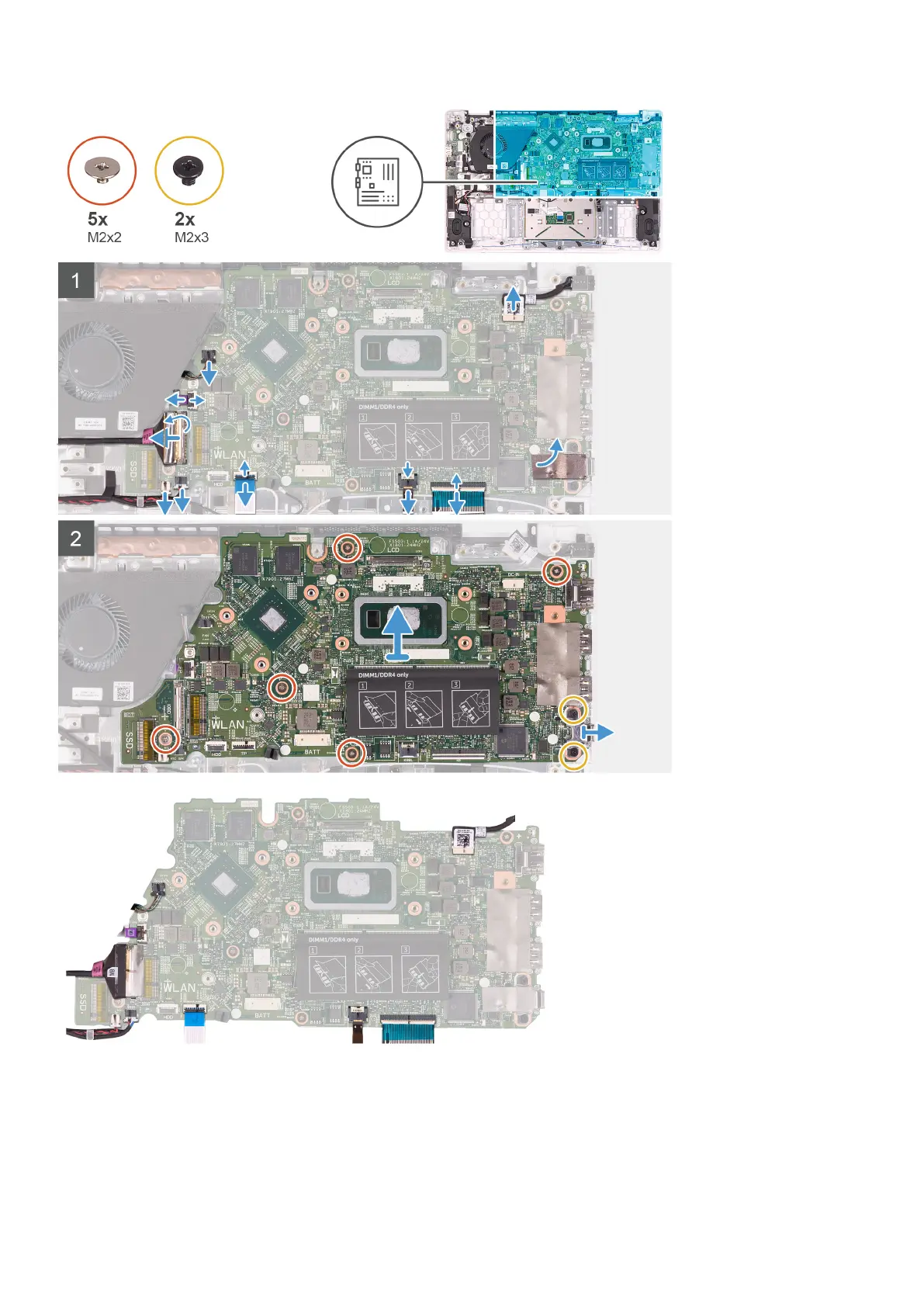

1. Open the latch and disconnect the I/O-board cable from the system board.
2. Open the latch and disconnect the power-adapter port cable from the system board.
3. Disconnect the coin-cell battery cable and the speaker cable from the system board.
52
Removing and installing components
