Steps

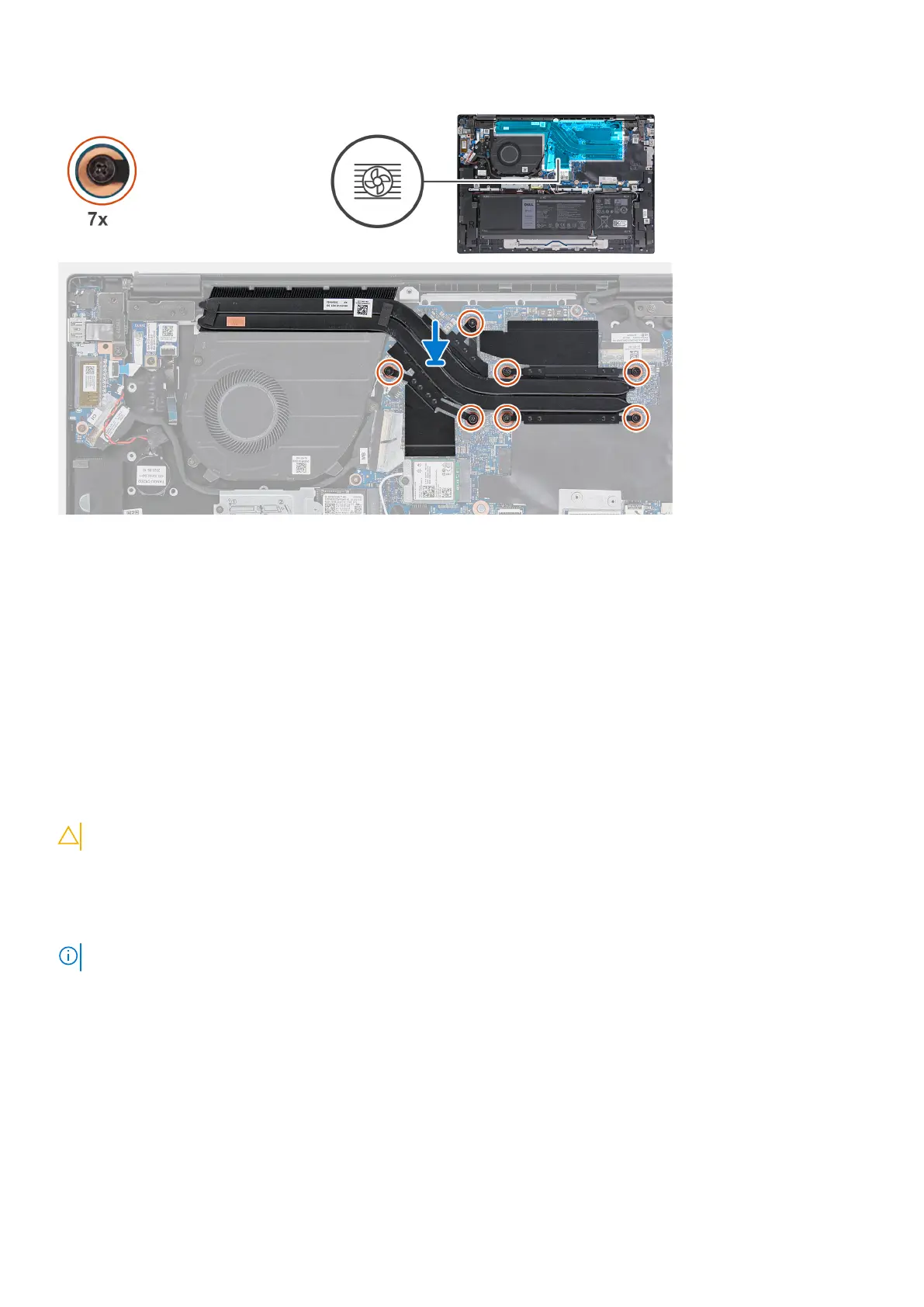

1. Align the captive screws on the heat sink to the screw holes on the system board.
2. In sequential order (1>2>3>4>5>6>7), tighten the four captive screws to secure the heat sink to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Removing the heat sink for computers shipped without a discrete
graphics card
Prerequisites
CAUTION: The information in this section is intended for authorized service technicians only.
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
NOTE: Before removing the base cover, ensure that there is no SD card installed in the SD card slot on your computer.
The following image(s) indicate the location of the heat sink and provides a visual representation of the removal procedure.
30
Removing and installing components
