Steps
1. Remove the five screws (M2x4) that secure the base cover to the palm-rest assembly.

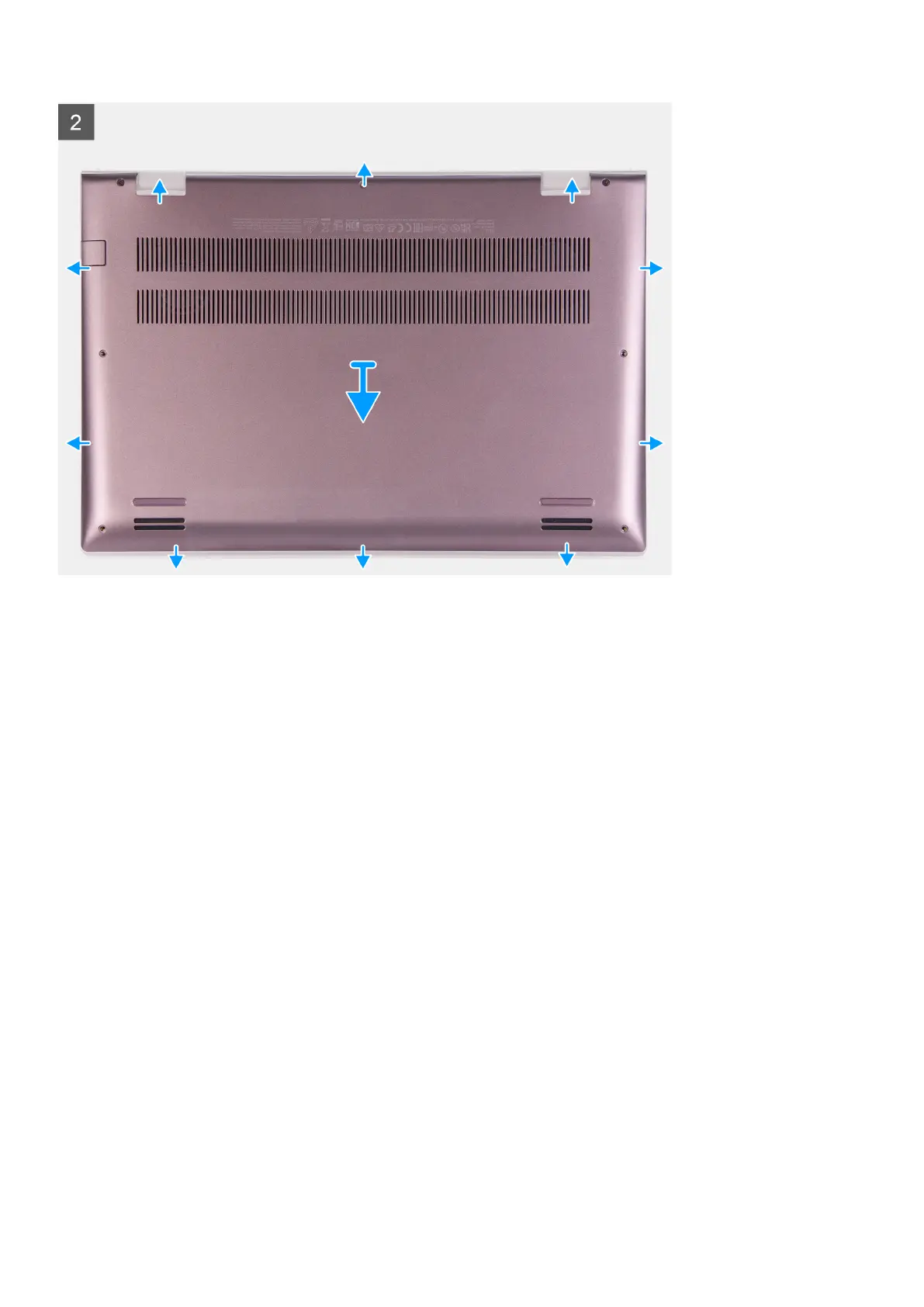

2. Loosen the two captive screws (M2x7).
3. Pry the base cover from the gap created between the base cover and palm-rest assembly and continue to work on the sides
to open the base cover.
4. Lift and slide the base cover off the palm-rest assembly.
Installing the base cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the base cover and provides a visual representation of the installation procedure.
14
Removing and installing components
