Fans
Removing the left fan
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Enter Service Mode.
3. Remove the base cover.
About this task

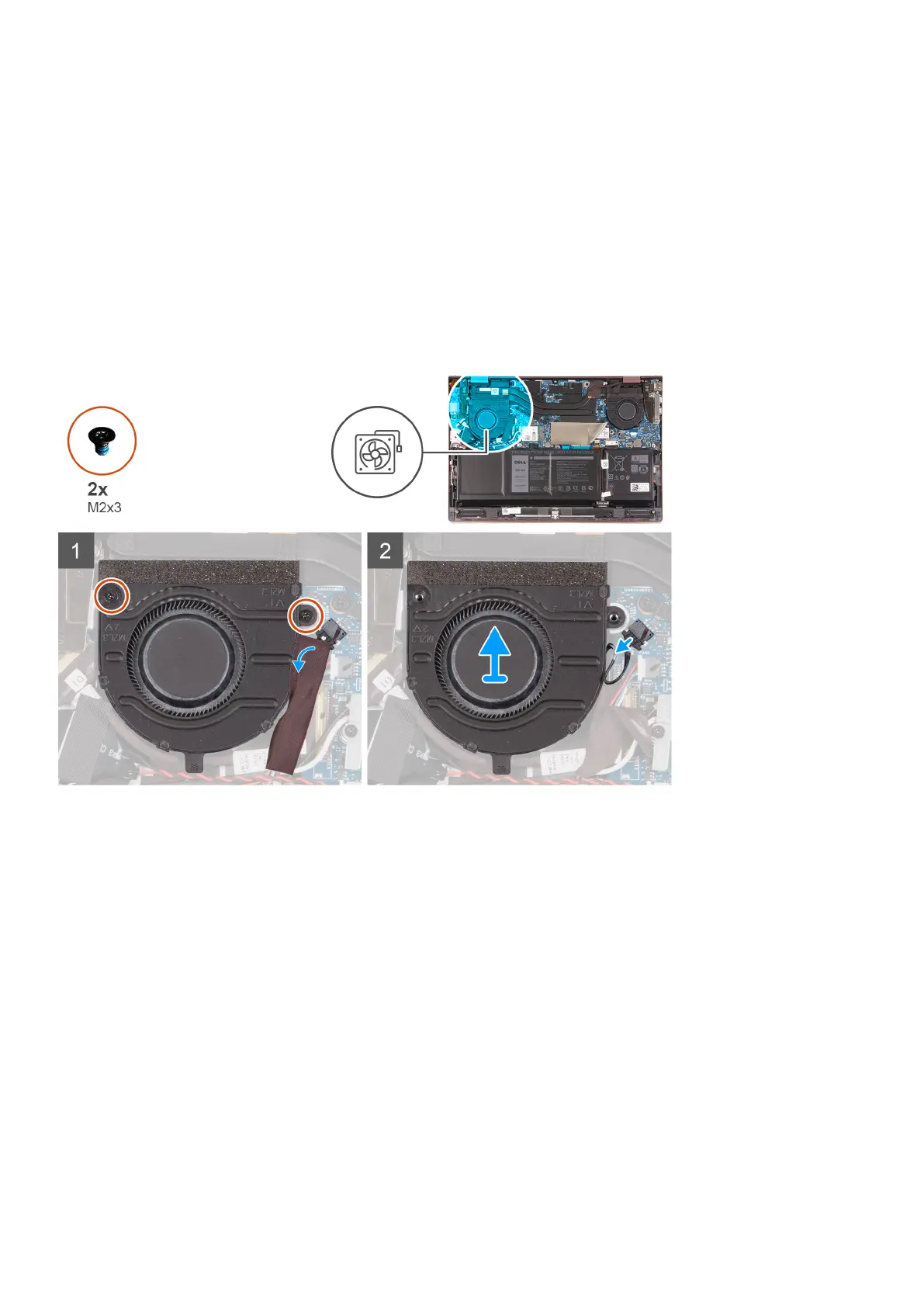

The following image(s) indicate the location of the left fan and provides a visual representation of the removal procedure.
Steps
1. Peel the Mylar off the system board.
2. Remove the two screws (M2x3) that secure the left fan to the palm-rest and keyboard assembly.
3. Disconnect the left-fan cable from the system board.
4. Lift the left fan off the palm-rest and keyboard assembly.
Installing the left fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the left fan and provides a visual representation of the installation procedure.
