Steps
1. Peel the Mylar off the system board.
2. Remove the two screws (M2x3) that secure the right fan to the palm-rest and keyboard assembly.
3. Disconnect the right-fan cable from the system board.
4. Lift the right fan off the palm-rest and keyboard assembly.
Installing the right fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

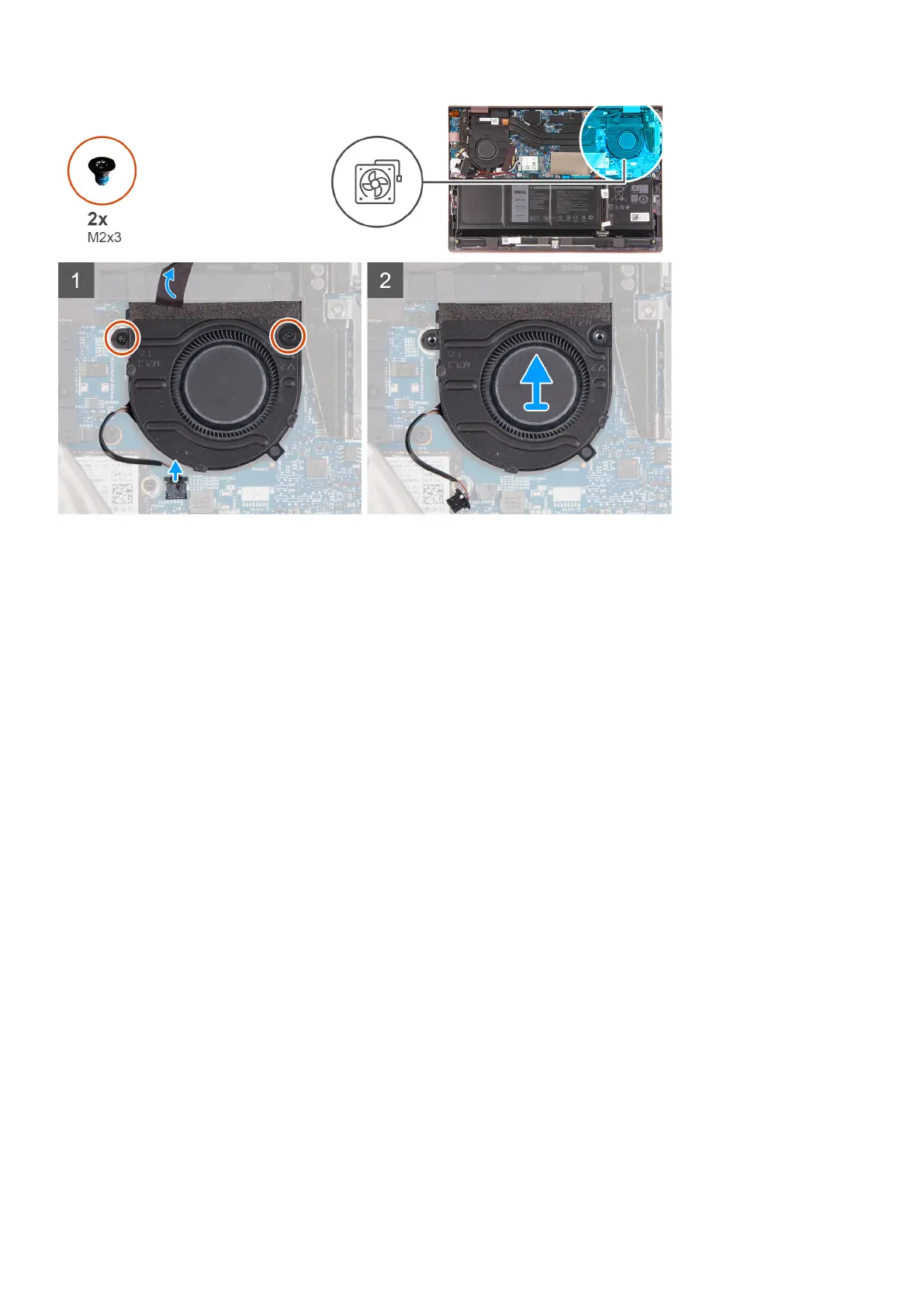

The following image(s) indicate the location of the right fan and provides a visual representation of the installation procedure.
