Steps
1. Peel the tape that secures the display-cable bracket to the system board.
2. Remove the screw (M2x3) that secures the display-cable bracket to the system board.
3. Lift the display-cable bracket off the system board.
4. Peel the tape that secures the display-cable connector latch to the system board.
5. Lift the latch and disconnect the display-cable from the connector on the system board.

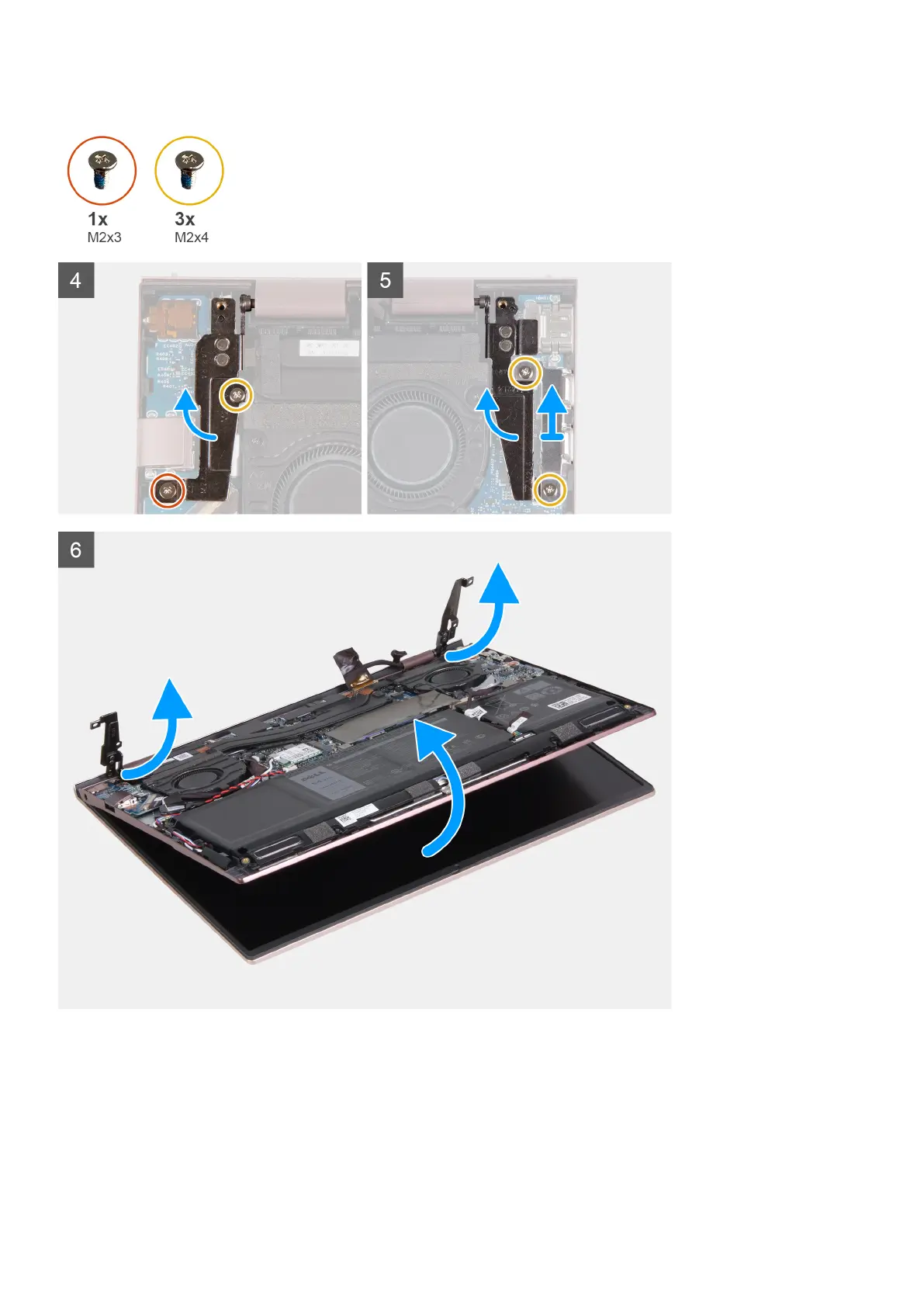

6. Remove the screw (M2x3) that secures the left-display hinge to the palm-rest and keyboard assembly.
Removing and installing components
37
