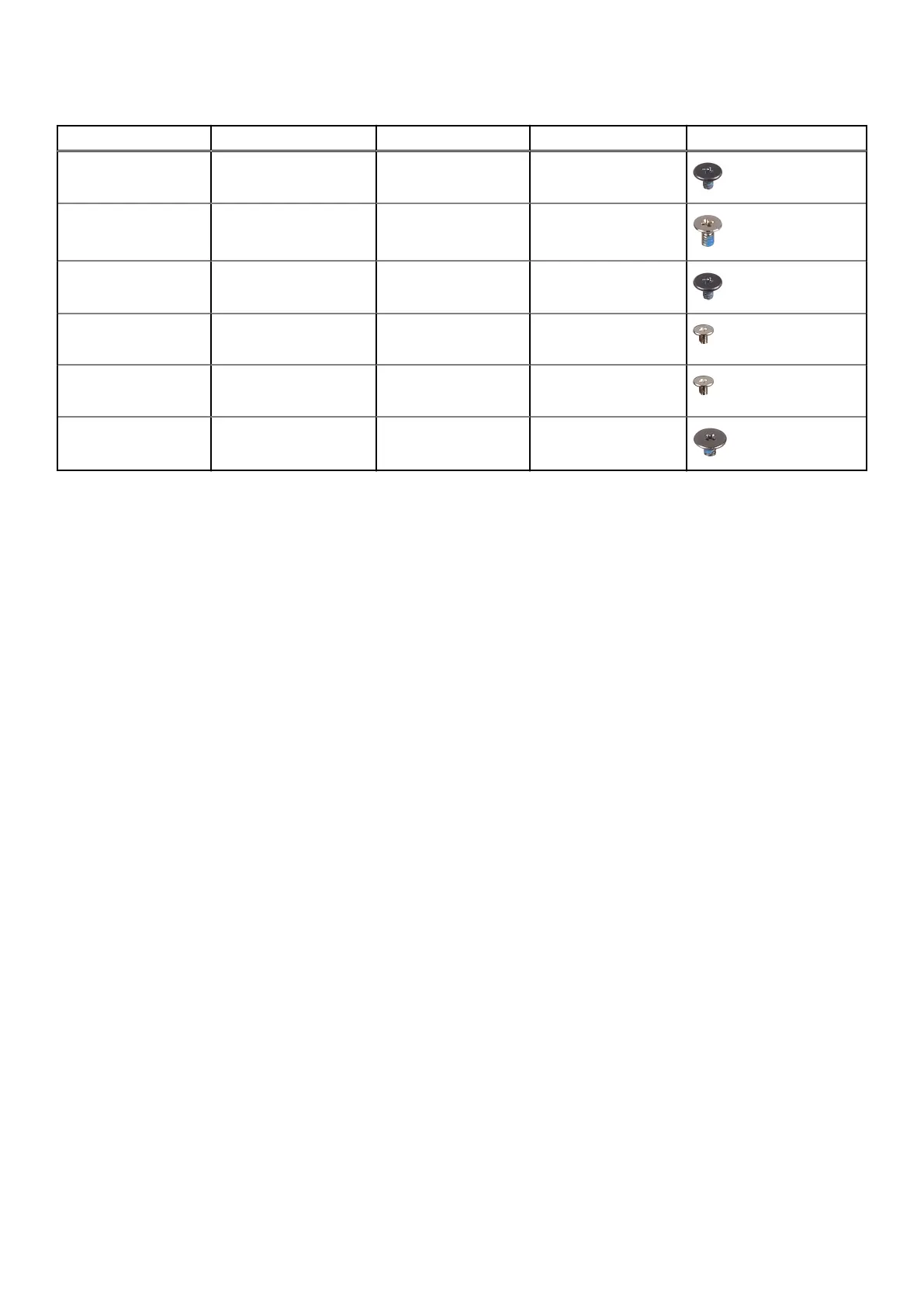

Table 1. Screw list (continued)
Component Secured to Screw type Quantity Screw image
Wireless-card bracket System board M1.6x2.3 (captive) 1
System board Palm-rest and keyboard
assembly
M1.6x3 4
System board Palm-rest and keyboard
assembly
M1.6x2.3 7
Power button with
fingerprint reader
Palm-rest and keyboard
assembly
M1.4x2 4
Keyboard Palm-rest and keyboard
assembly
M1.4x1.2 17
Keyboard Palm-rest and keyboard
assembly
M1.6x2 7
Major components of XPS 13 Plus 9320
