Installing the heat sink
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
NOTE: Incorrect alignment of the heat sink can damage the system board and processor.
NOTE: If either the system board or the heat sink is replaced, use the thermal grease that is provided in the kit to ensure
that thermal conductivity is achieved.

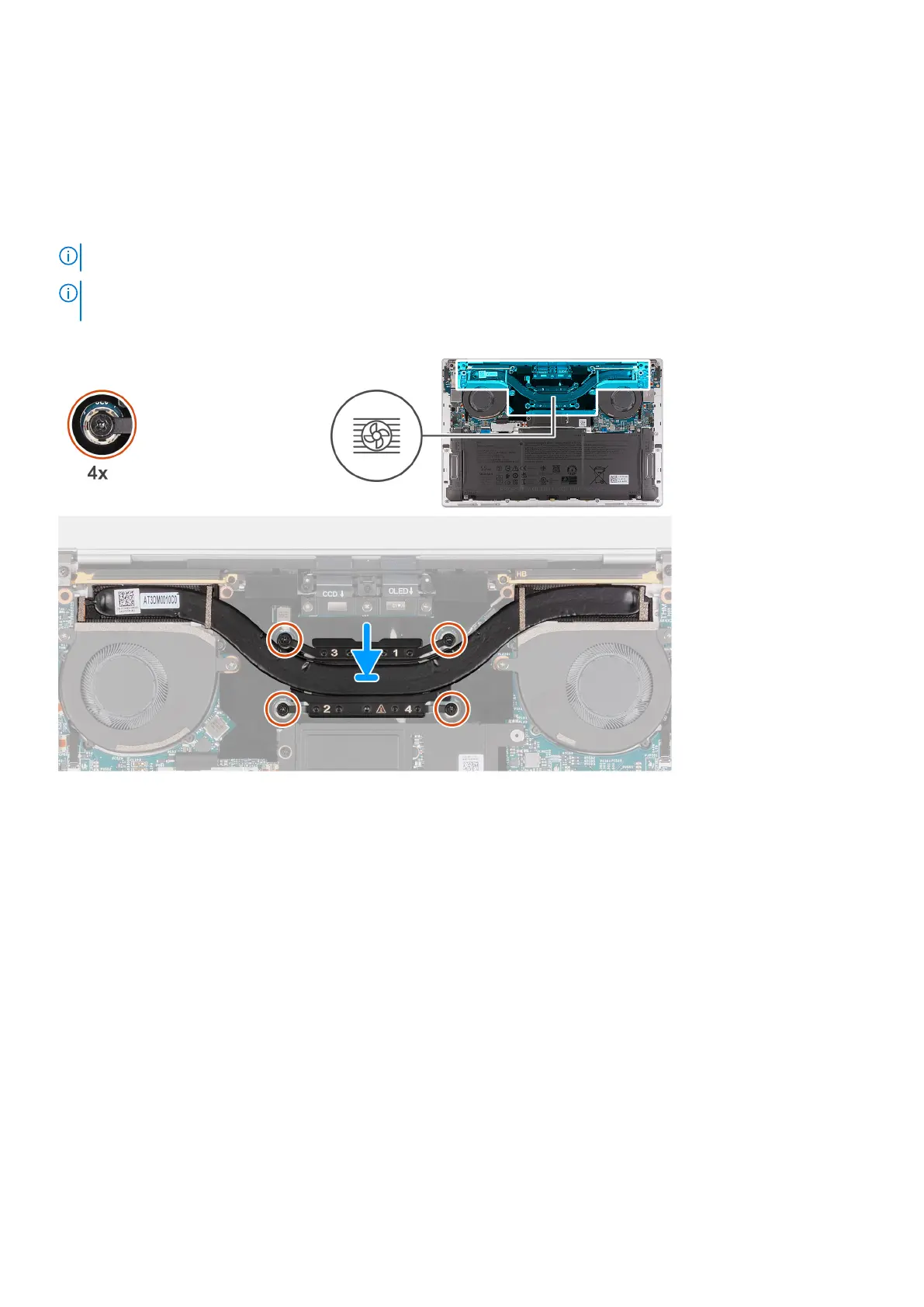

The following image(s) indicate the location of the heat sink and provides a visual representation of the installation procedure.
Steps
1. Align the screw holes of the heat sink with the screw holes of the system board.
2. In sequential order (1>2>3>4), tighten the four captive screws that secure the heat sink to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Display assembly
Removing the display assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
Removing and installing components
29
