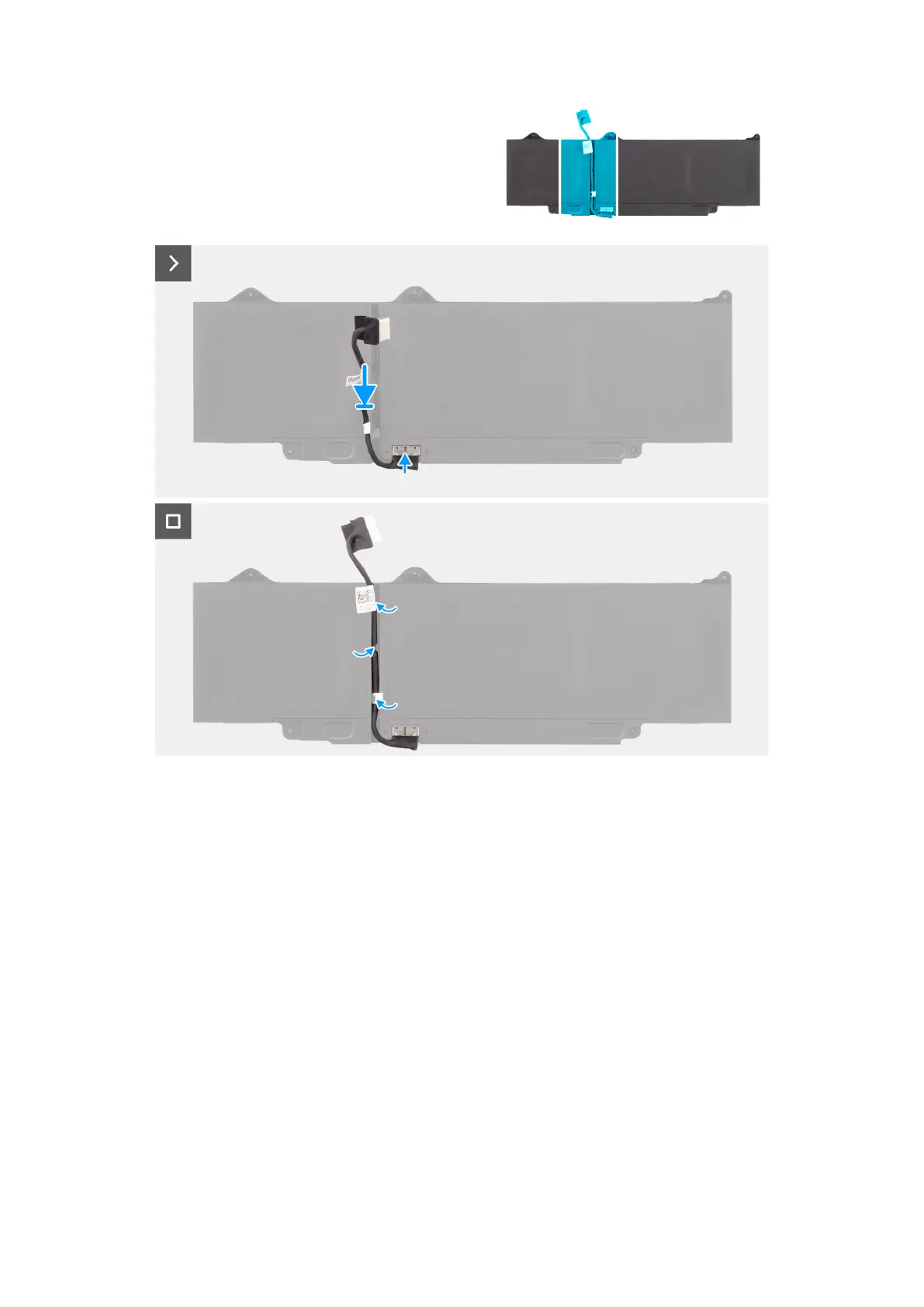

Figure 26. Installing the battery cable
Steps
1. Connect the battery cable to the connector on the battery.
2. Route the battery cable through the routing guides on the battery.
Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Power-adapter port
Removing the power-adapter port
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
Removing and installing Field Replaceable Units (FRUs)
57
