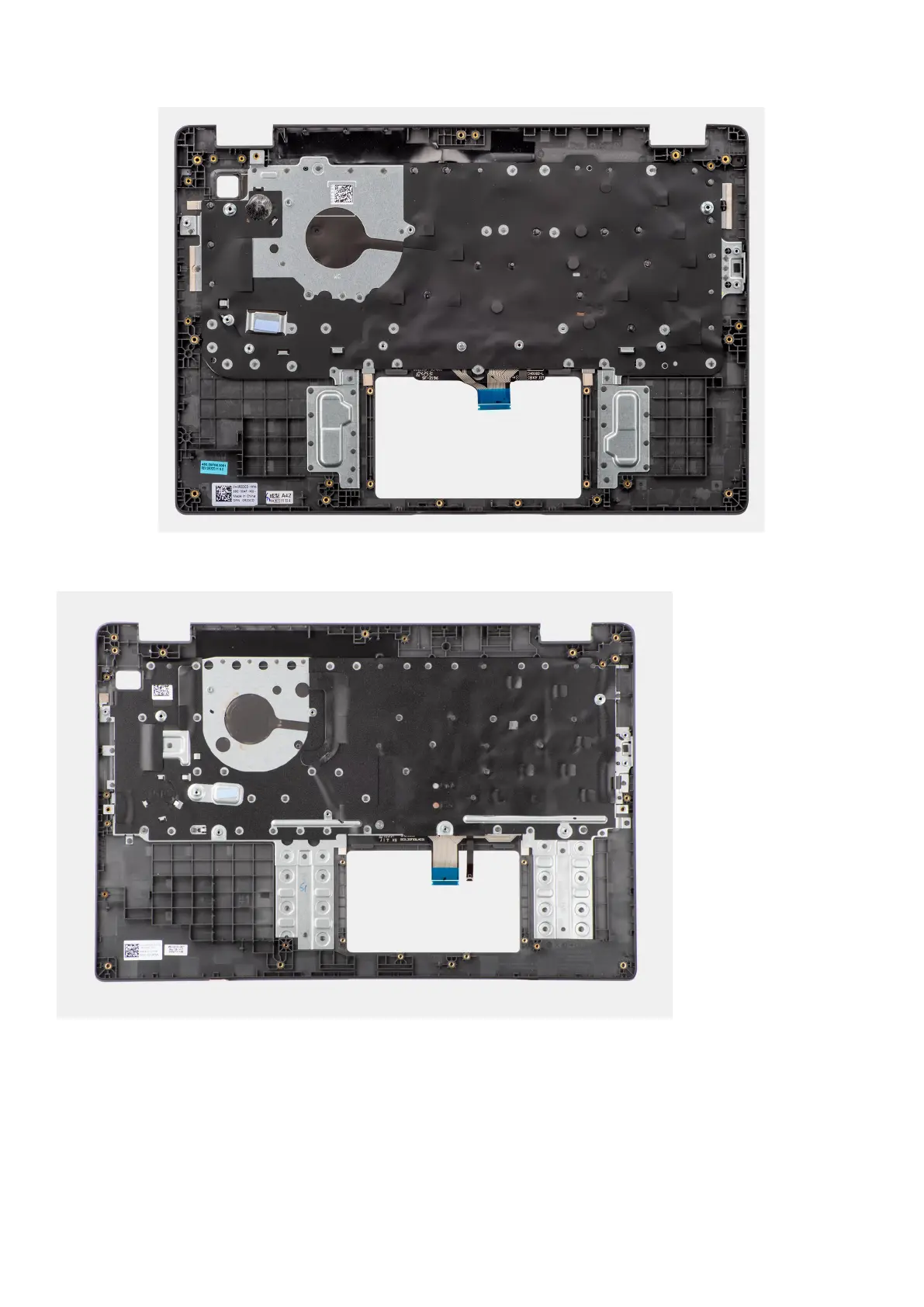

Figure 47. Installing the palm-rest and keyboard assembly
Steps
Place the palm-rest and keyboard assembly on a flat surface.
Next steps
1. Install the power-adapter port.
2. Install the system board.
Removing and installing Field Replaceable Units (FRUs)
79
