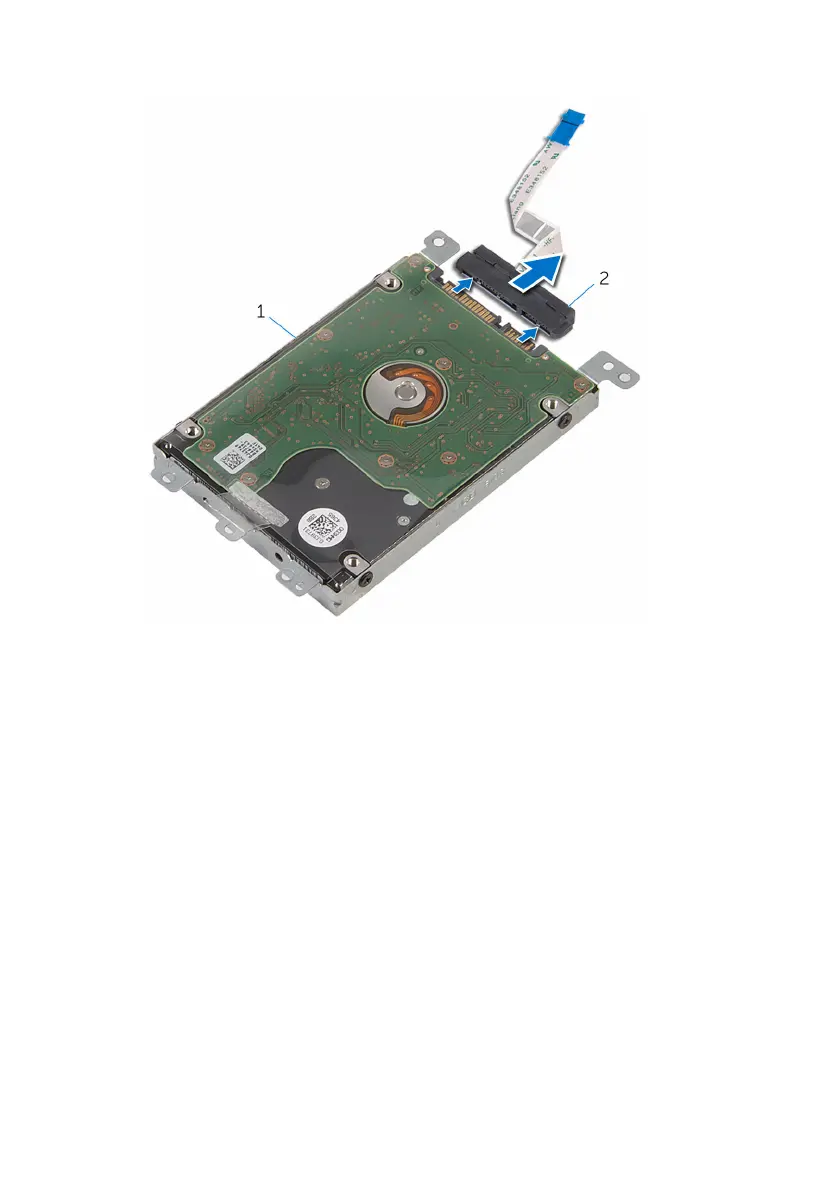

4 Disconnect the interposer from the hard drive.

1 hard-drive assembly 2 interposer

5 Remove the screws that secure the hard-drive bracket to the hard drive.
