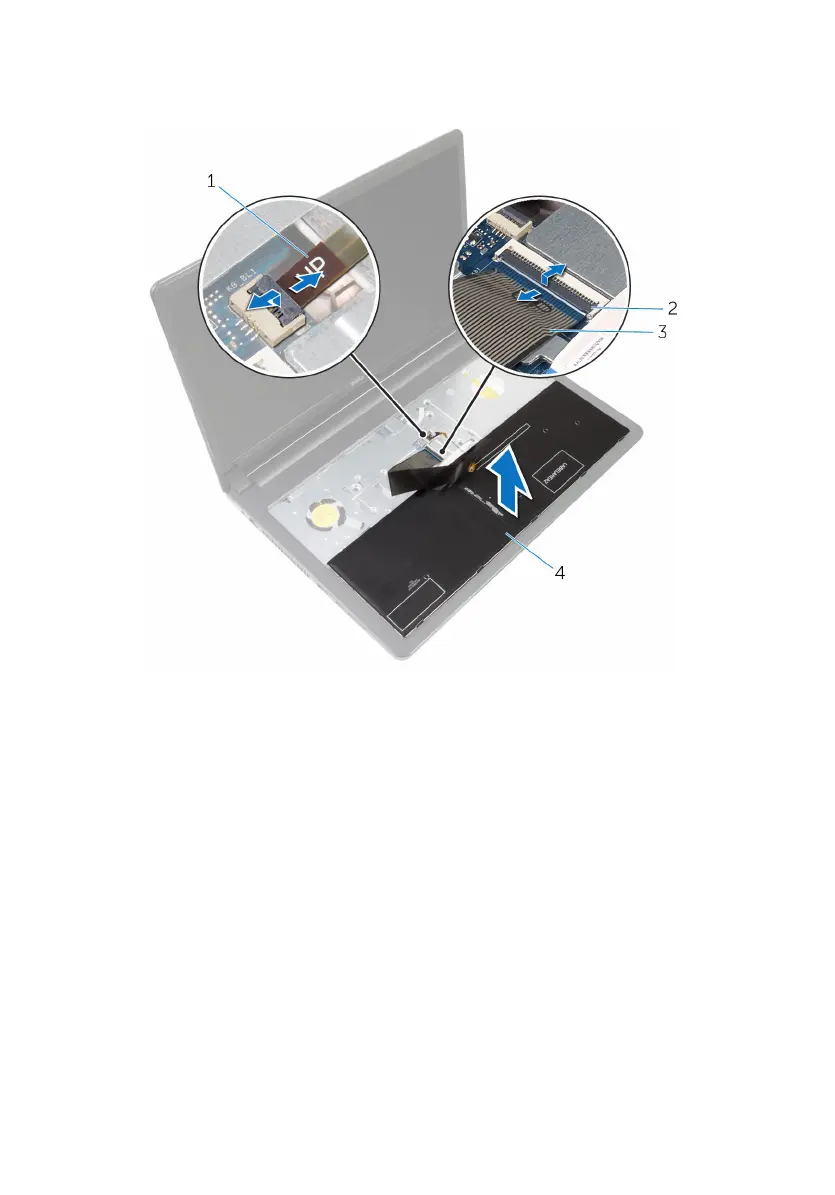

5 Lift the latches and disconnect the keyboard cable and backlight cable

from the system board.

1 backlight cable 2 latches (2)

3 keyboard cable 4 keyboard

6 Lift the keyboard off the palm-rest assembly.
