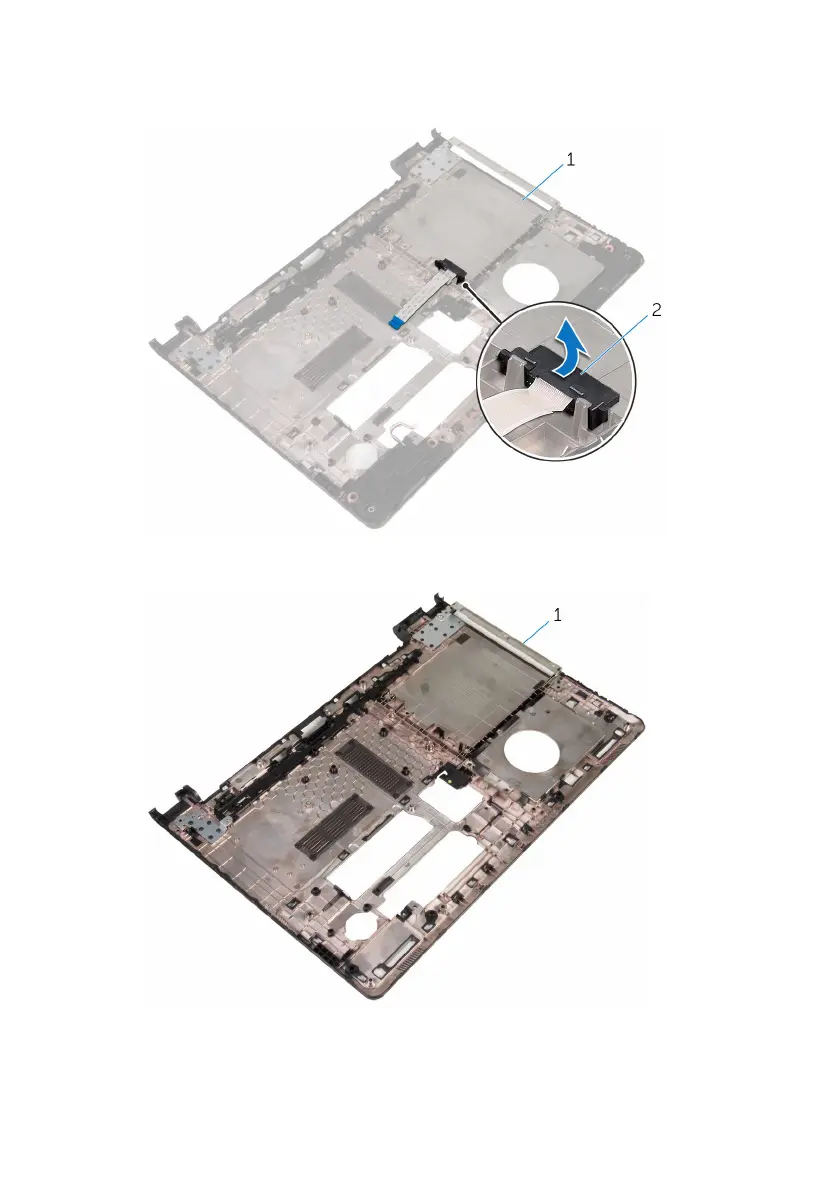

9 Lift the optical-drive interposer along with the cable off the computer

base.

1 optical-drive interposer

1 computer base
