3 In sequential order (indicated on the heat-sink assembly), remove the

screws that secure the heat-sink assembly to the system board.

4 Lift the heat-sink assembly off the system board.

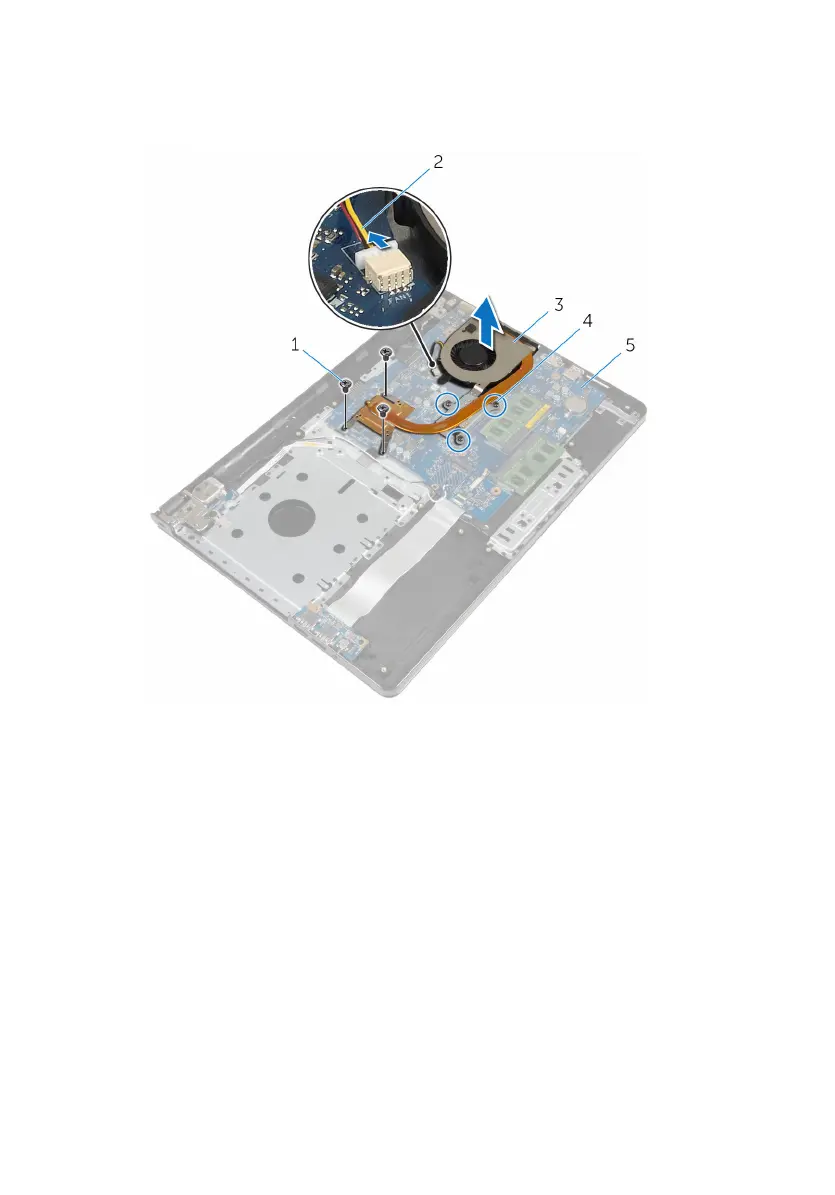

1 screws (3) 2 fan cable

3 heat-sink assembly 4 captive screws (3)

5 system board
