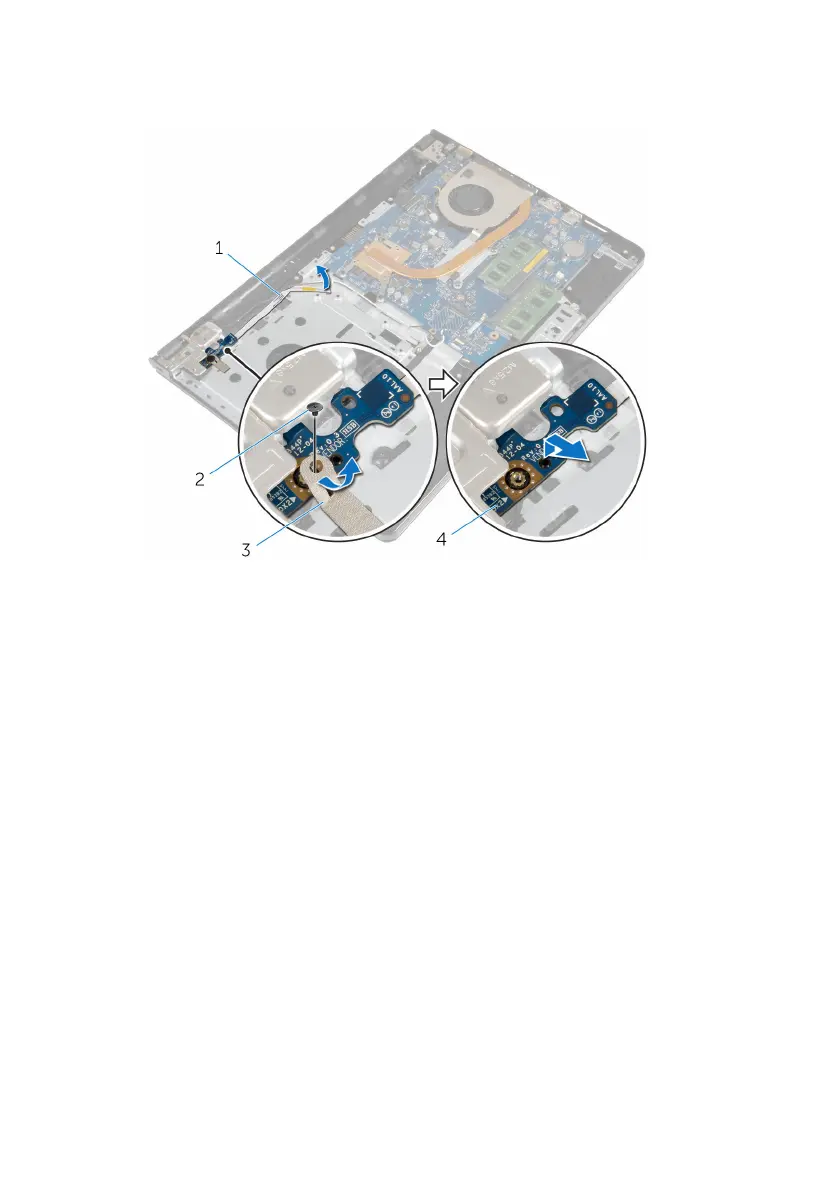

7 Lift the power-button board at an angle along with the cable off the

palm-rest assembly.

1 power-button board cable 2 screw

3 tape 4 power-button board
