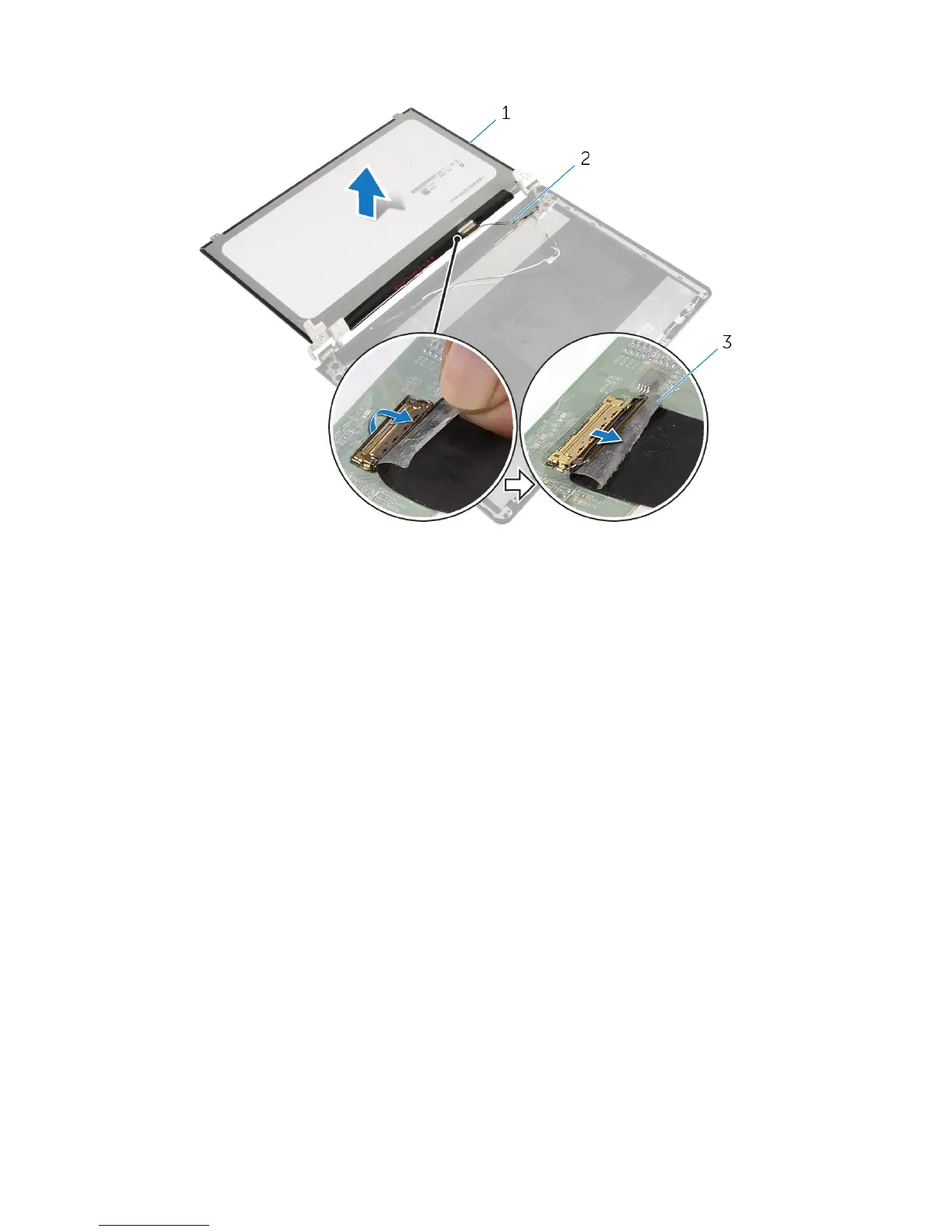

4 Disconnect the display cable from the display-panel cable connector.

1 display panel 2 display cable

3 tape

5 Lift the display panel away from the display back-cover.
