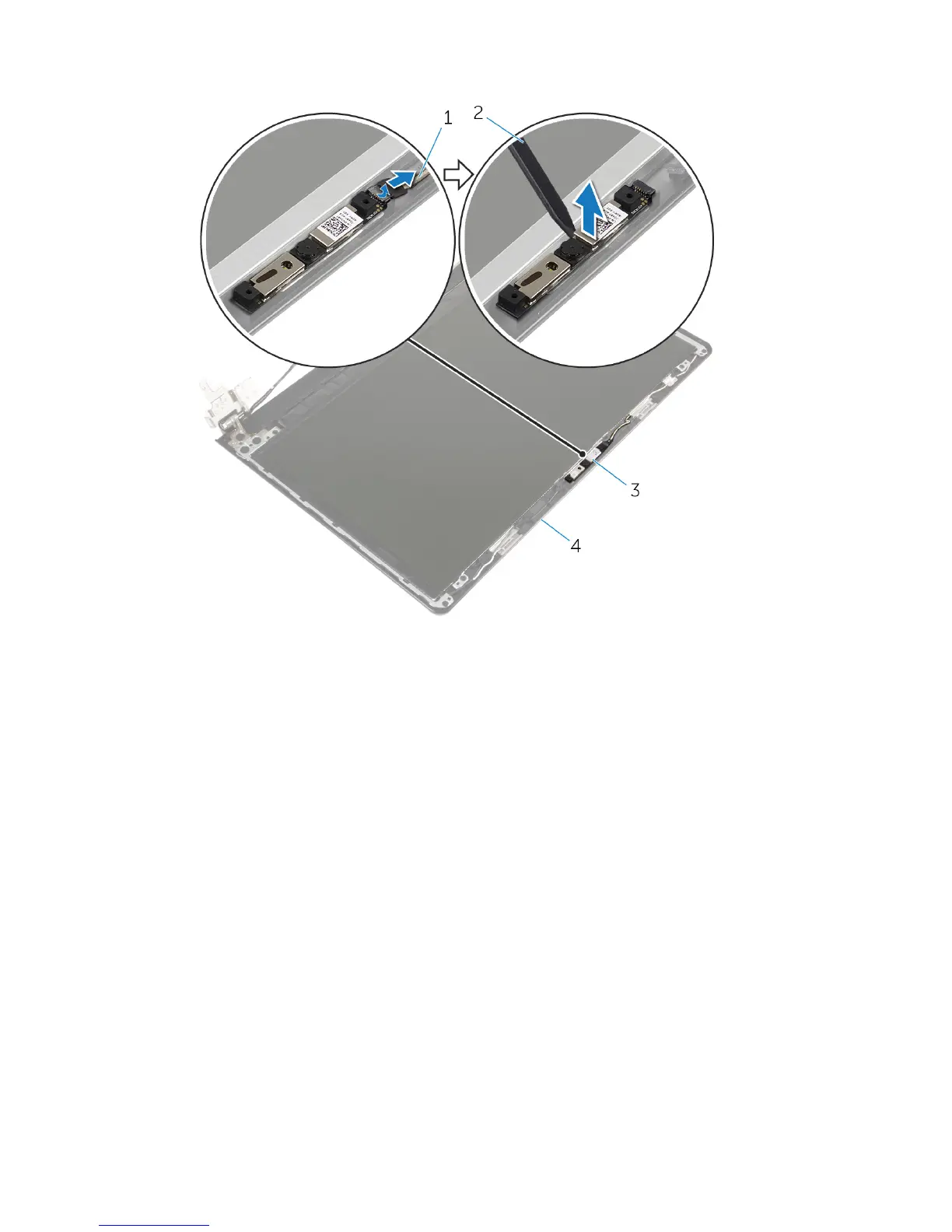

3 Lift the camera off the display back-cover.

1 camera cable 2 plastic scribe

3 camera 4 display back-cover
