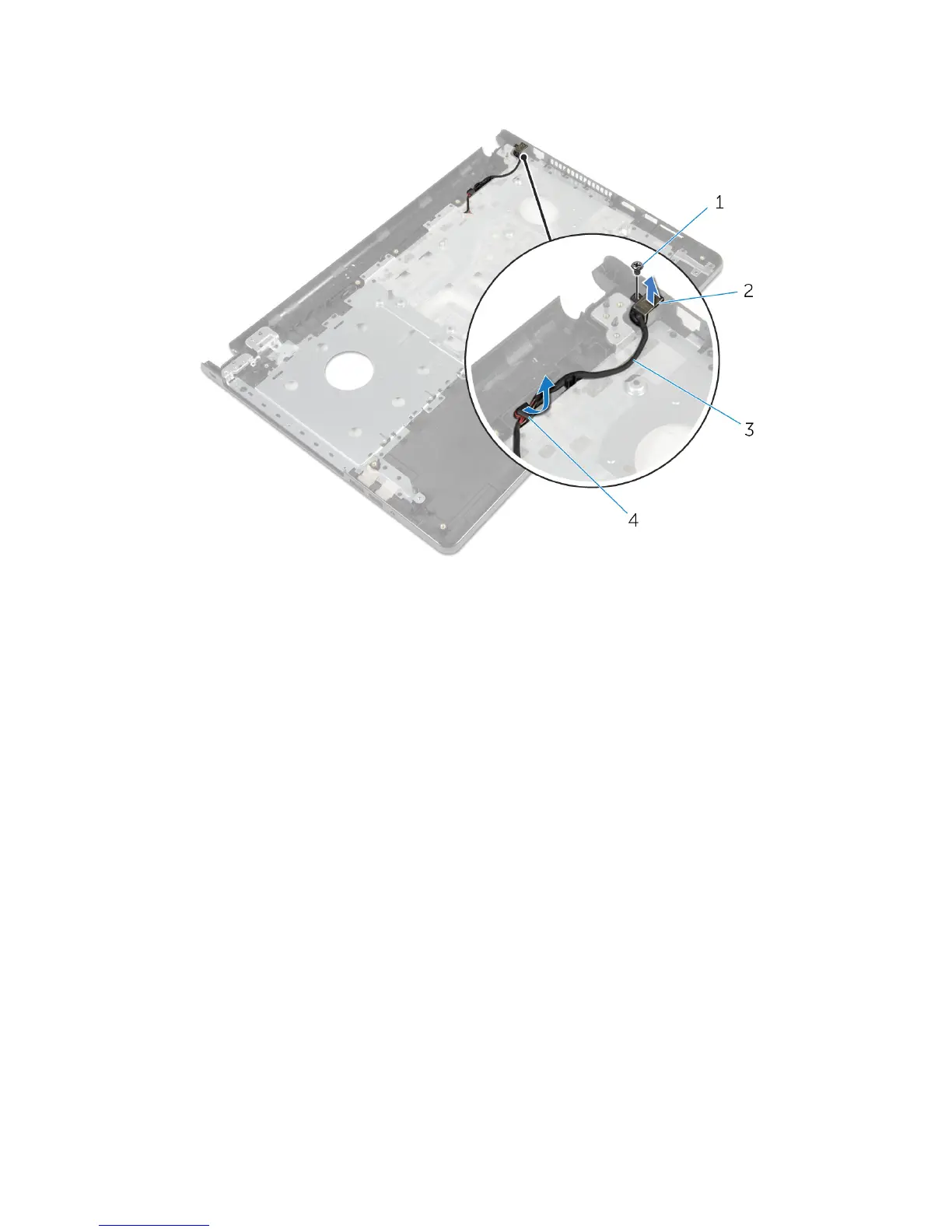

3 Lift the power-adapter port, along with its cable, off the palm-rest

assembly.

1 screw 2 power-adapter port

3 power-adapter port cable 4 routing guides
