5
Lift the bat
tery
o
the palm-r
est assembly
.

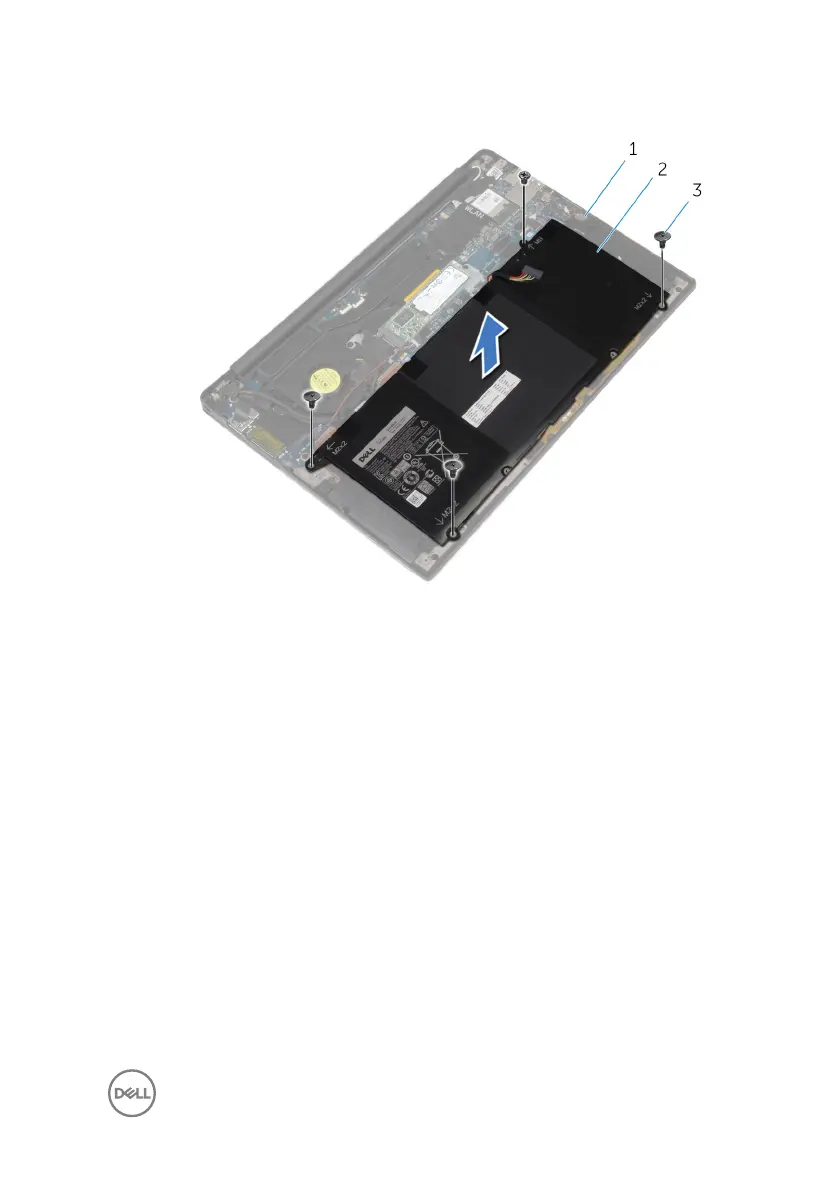

Figur
e 4. Removing the batt
ery
1
palm-r
est assembly
2
batt
ery
3
scr
ews (
4)
6
T
urn the computer over
, open the display
, and press the po
wer butt
on for about
5 seconds to gr
ound the computer
.
21
20
22
