2 Slide and remove the solid-state drive from the solid-state drive slot.

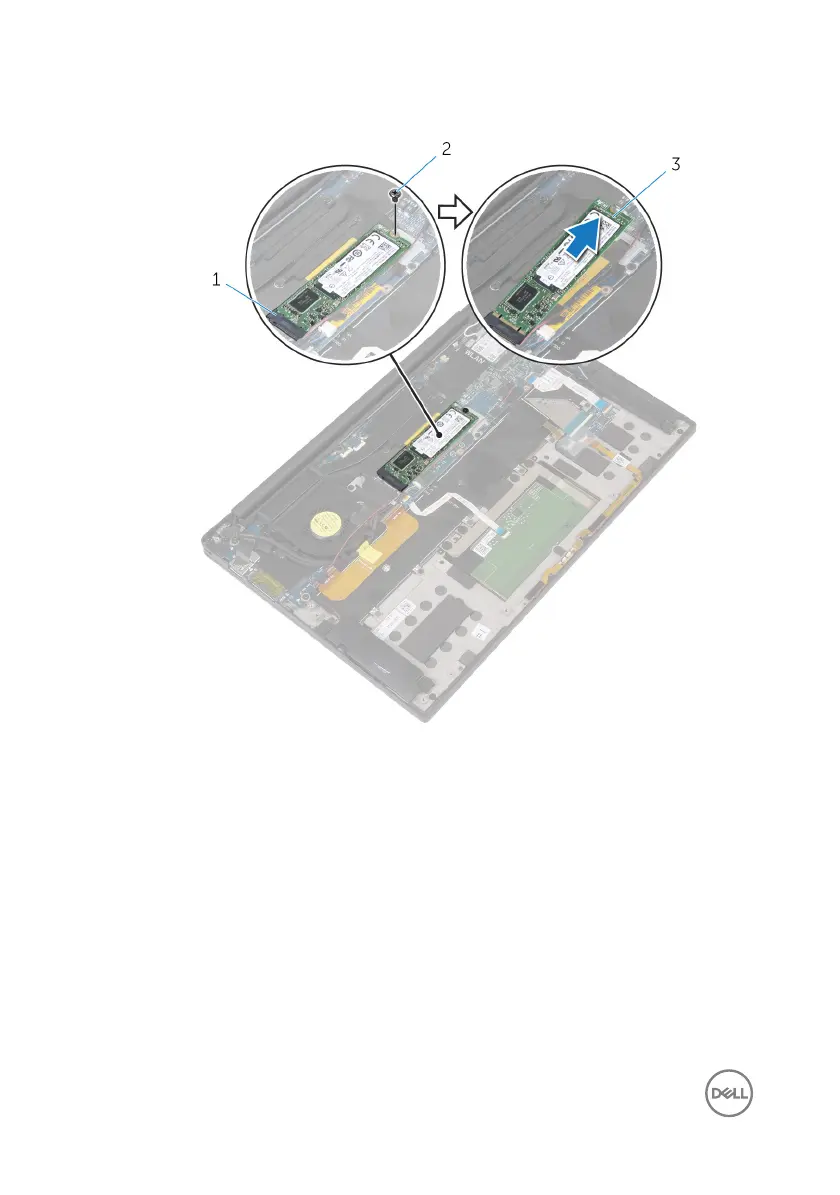

Figure 5. Removing the solid-state drive

solid-state drive slot 2 screw

3 solid-state drive
