2 Note the location of the coin-cell battery and pry it o the palm-rest assembly.

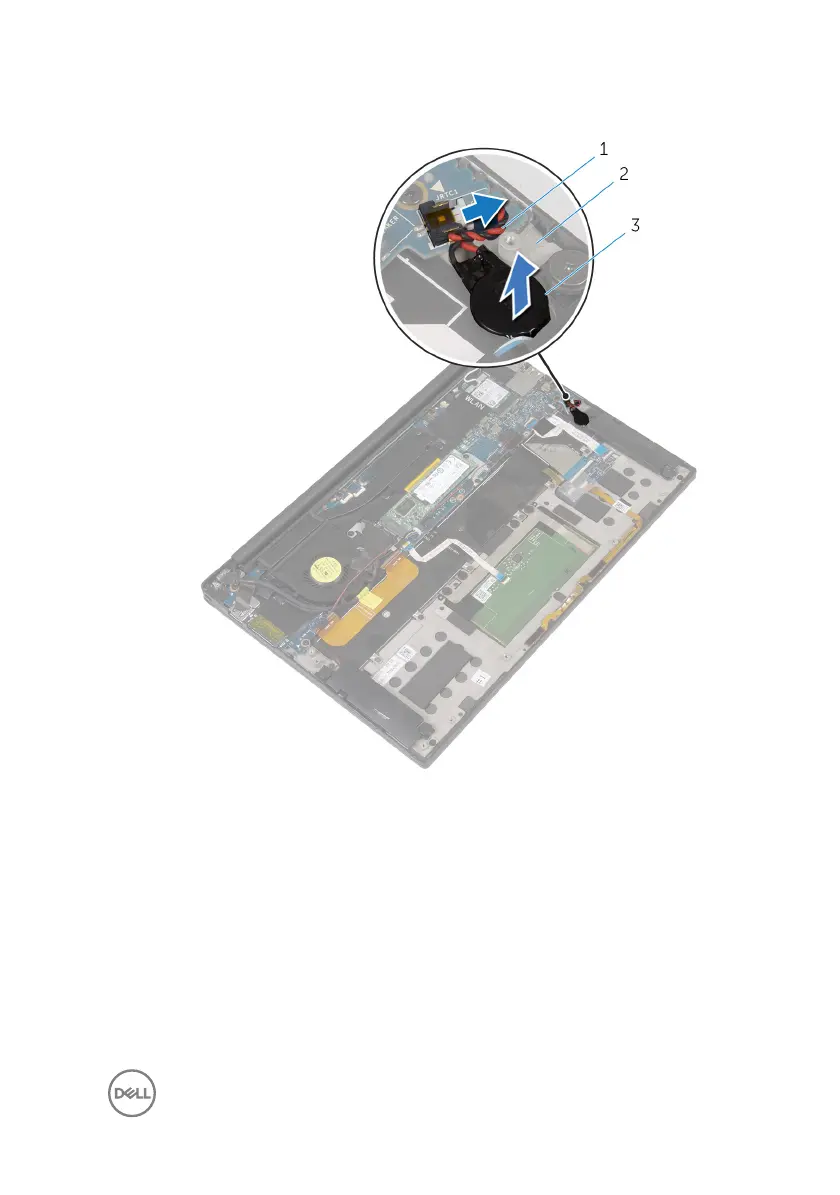

Figure 10. Removing the coin-cell battery

coin-cell battery cable 2 palm-rest assembly

3 coin-cell battery
