2 Lift the heat sink o the system board.

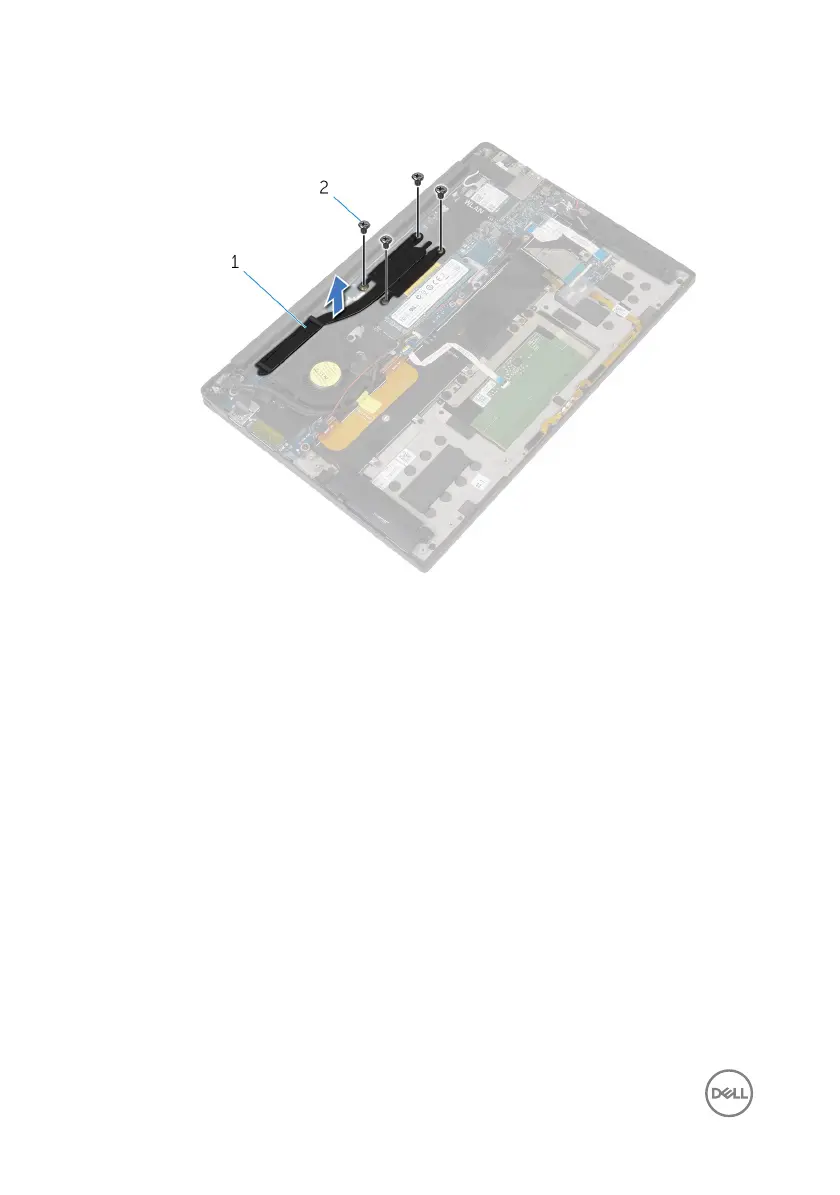

Figure 11. Removing the heat sink

1 heat sink 2 M2x3 screws (4)
