2 Note the I/O-board cable routing as well as its orientation, and then peel o the

cable from the keyboard.

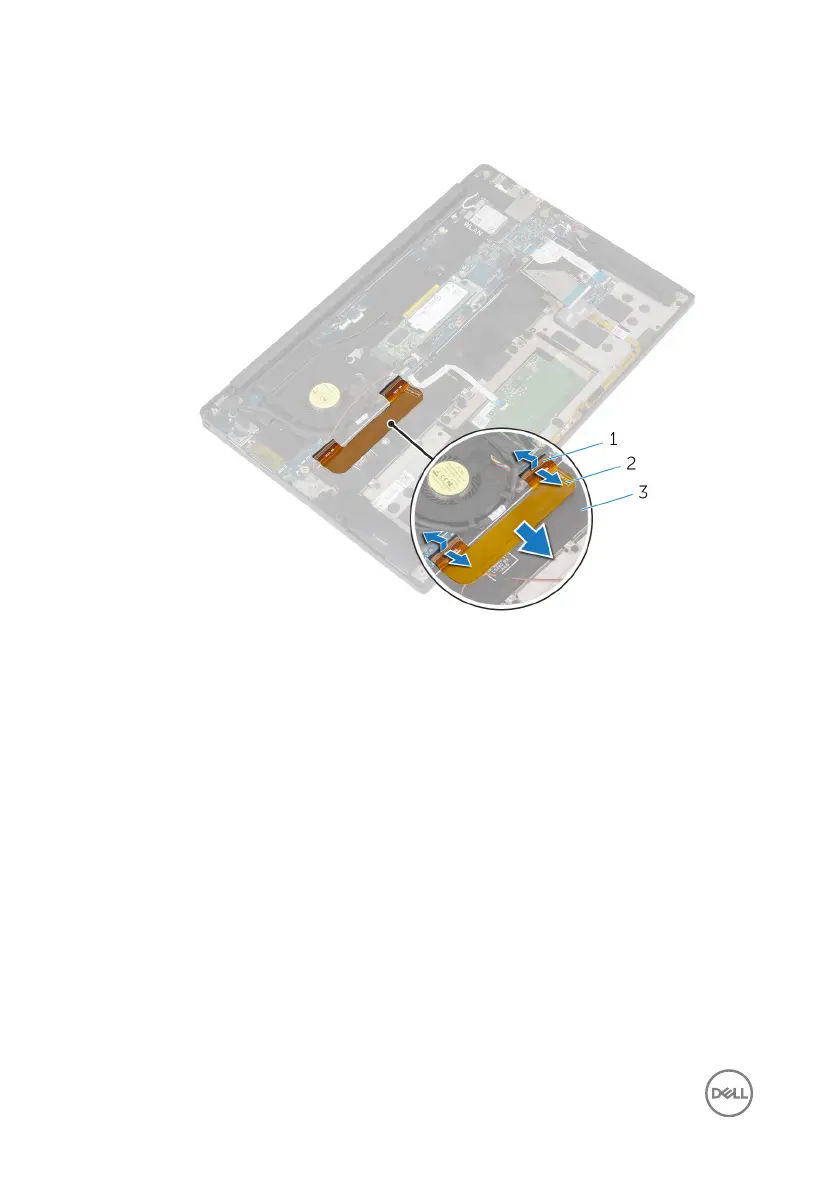

Figure 15. Removing the I/O-board cable

latches (2) 2 I/O-board cable

3 keyboard
