5 Open the latch and disconnect the ngerprint-reader cable (optional) from the
I/O board.

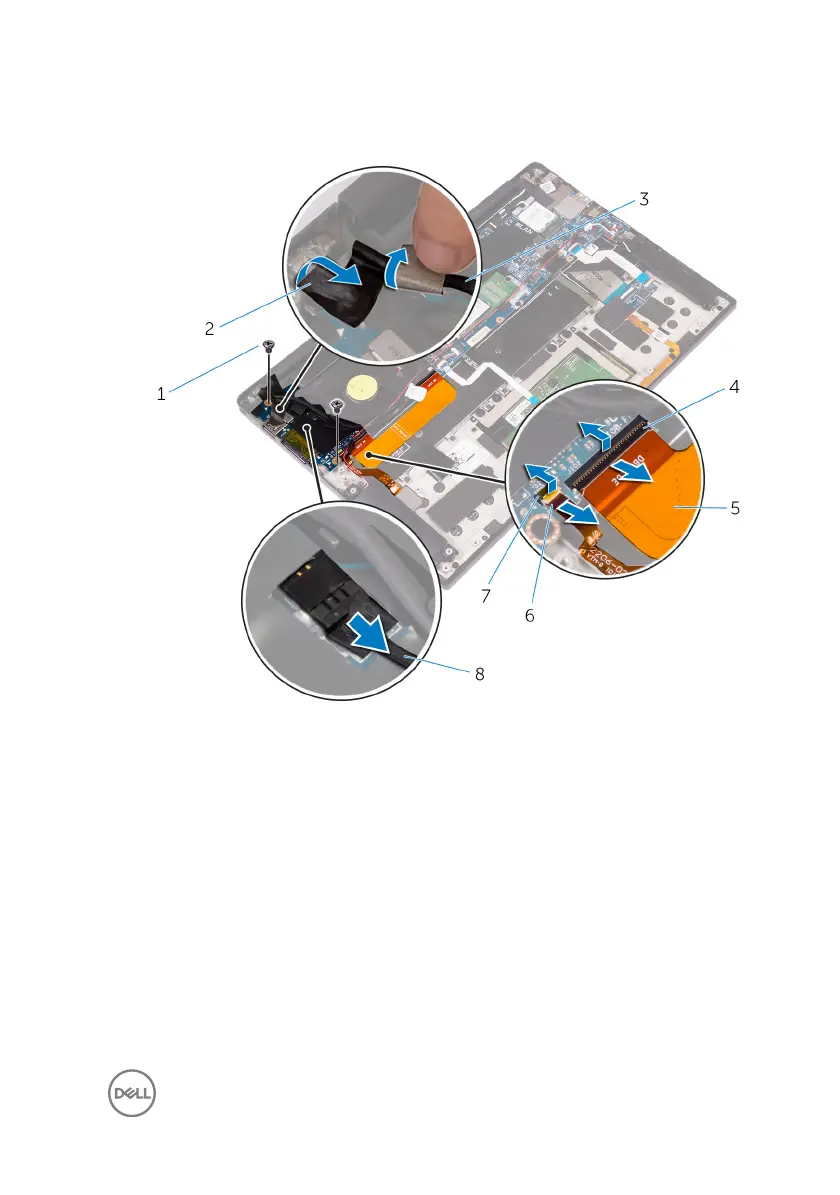

Figure 16. Removing the I/O board
1
screws (2) 2 tape
3 display cable 4 latch
5 I/O-board cable 6 ngerprint-reader cable
(optional)
7 latch 8 media-card reader cable
6 Peel o the tape that secures the I/O board.
