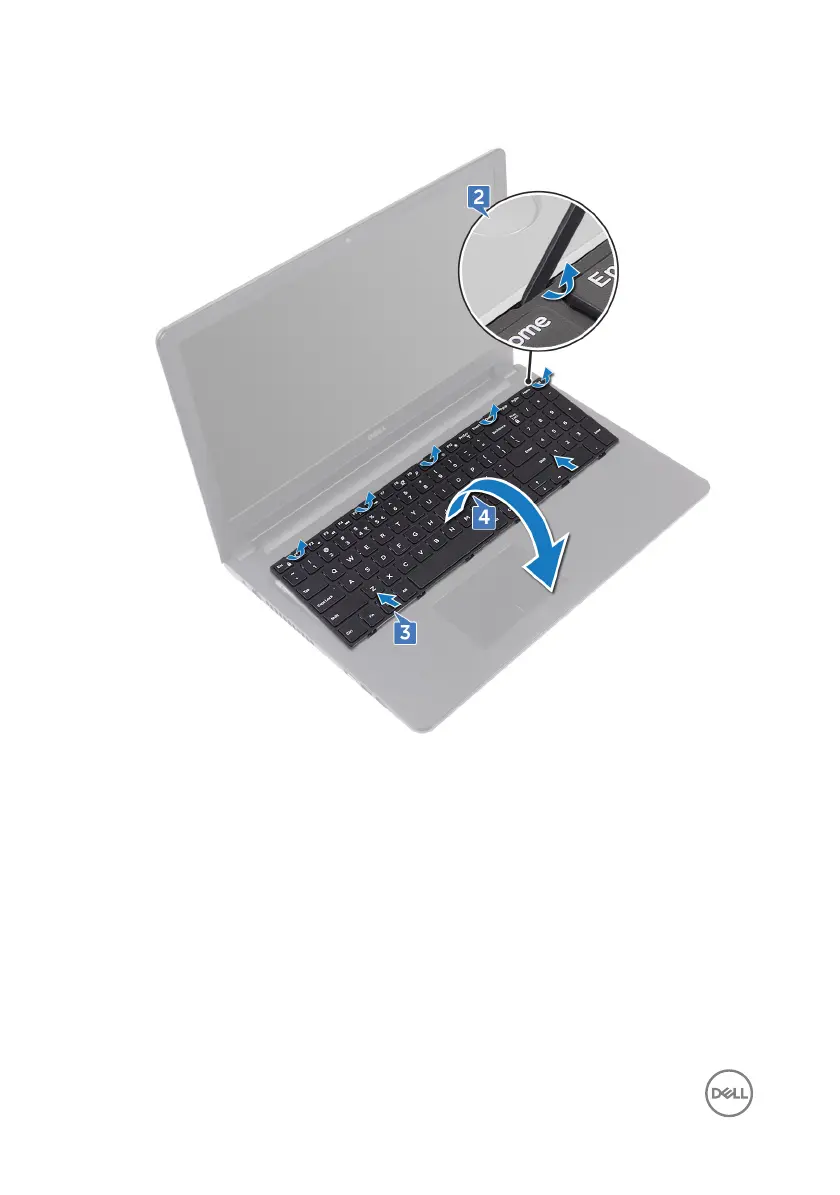

4 Carefully turn the keyboard over and place it on the palm-rest assembly.

5 Open the latch and disconnect the keyboard cable from the system board.
