Dell P63F - Procedure

To Next Page

To Previous Page

Procedure

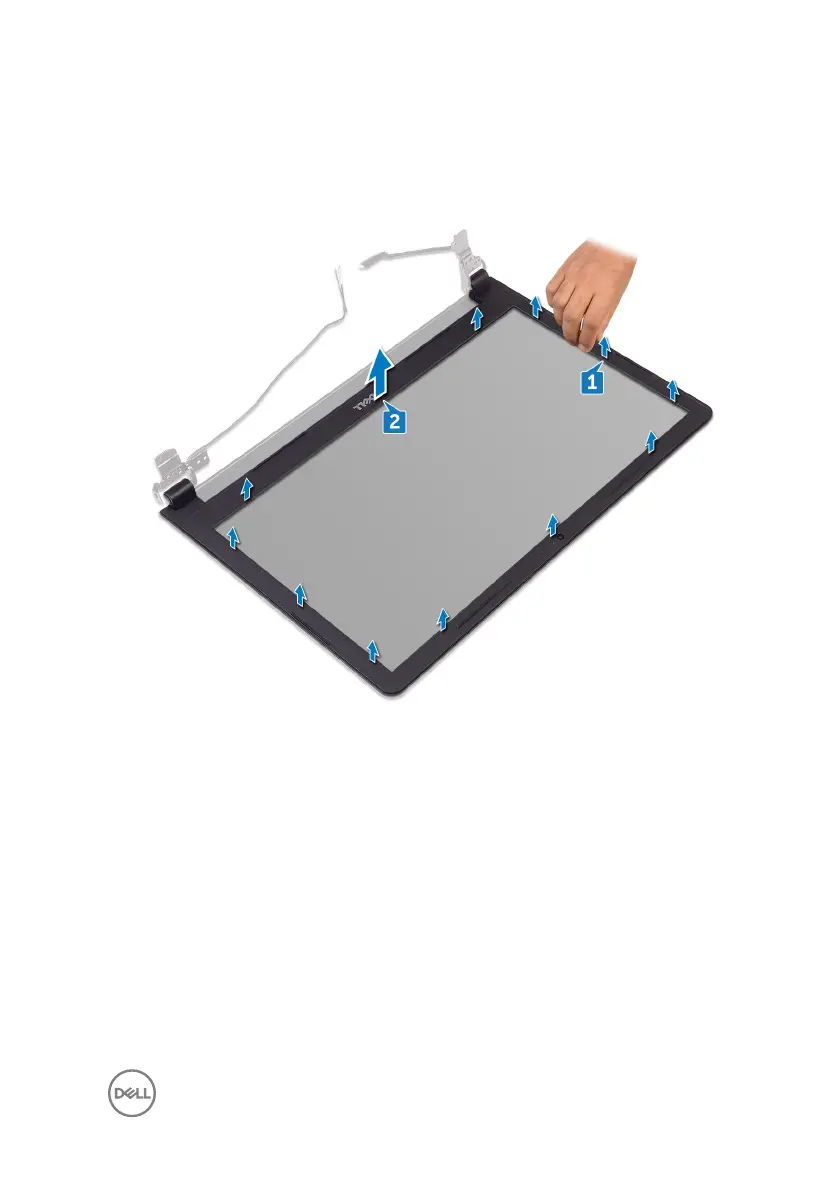

1 Using your ngertips, carefully pry up the inner edges of the display bezel.

2 Remove the display bezel o the display back-cover and antenna assembly.
