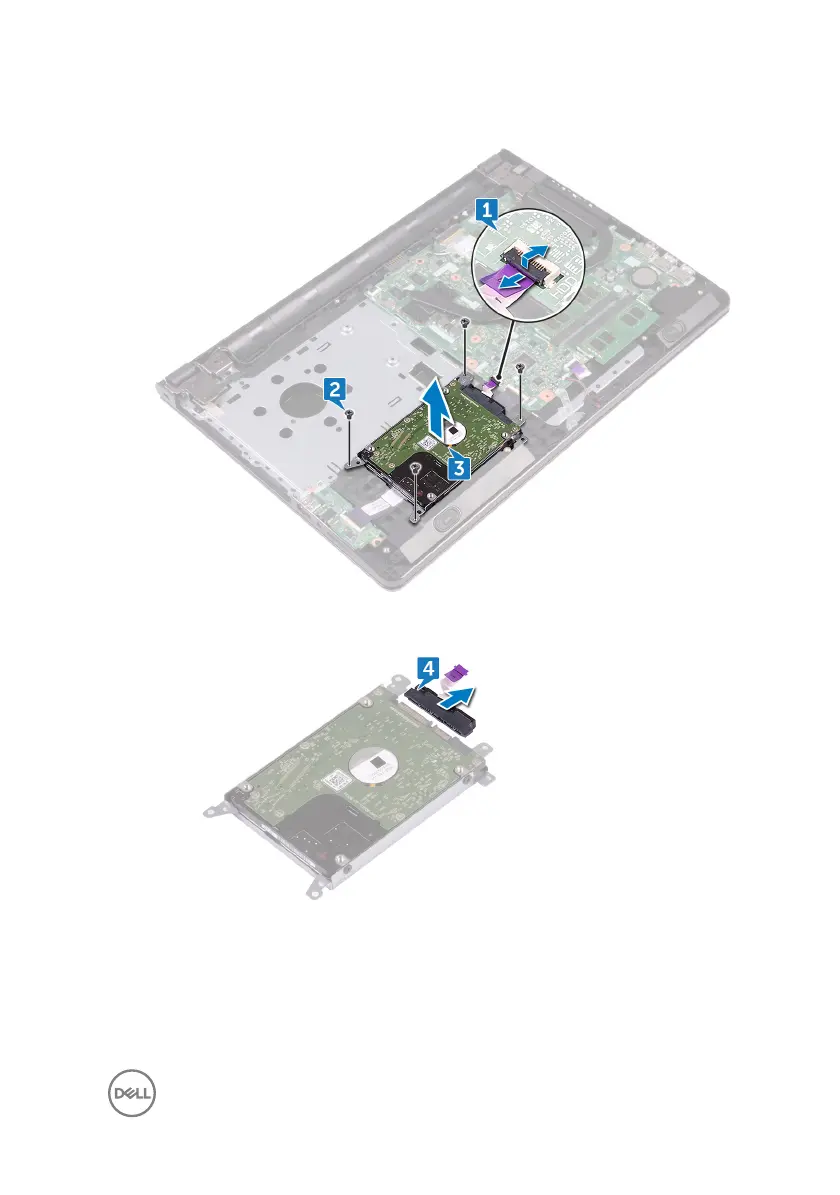

3 Lift the hard-drive assembly o the palm-rest assembly.

4 Disconnect the interposer from the hard-drive assembly.

5 Remove the four screws (M3x3) that secure the hard-drive bracket to the hard

drive.
