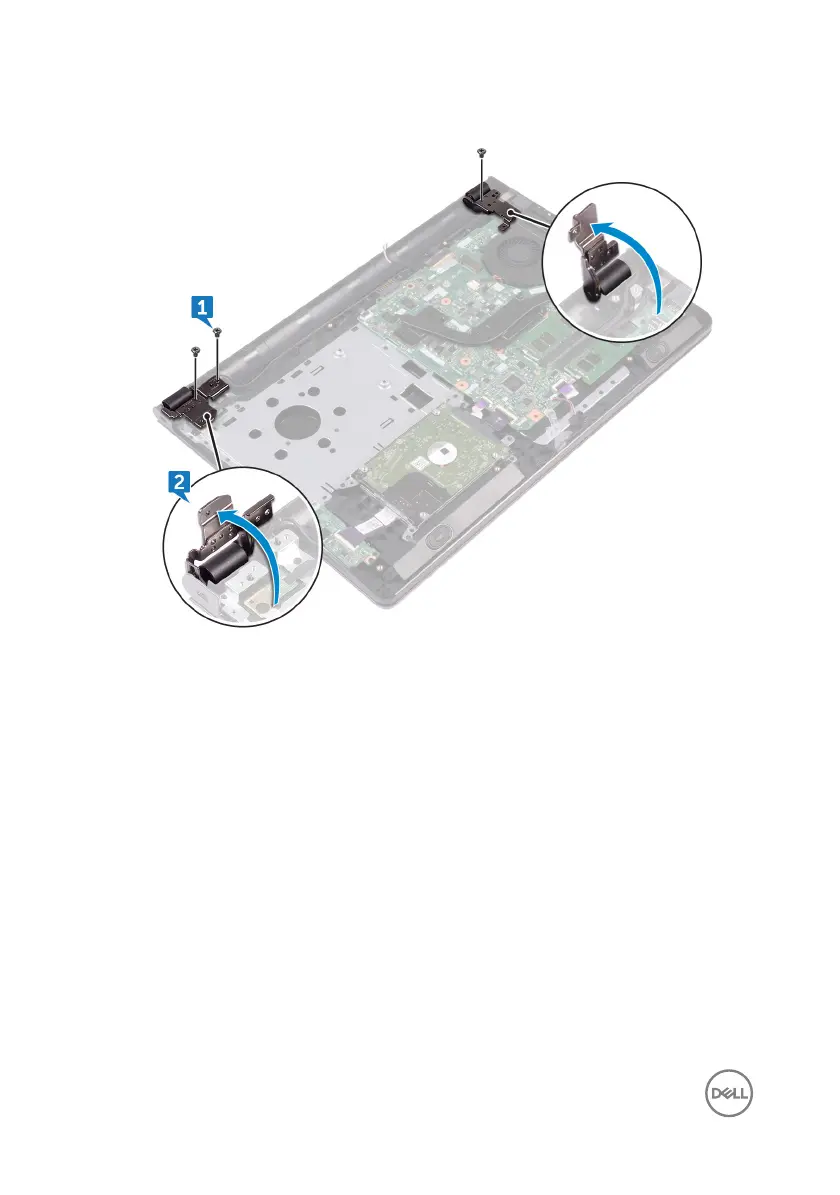

2 Open the display hinges to an angle of 90 degrees.
3 Peel the tape that secures the display cable to the palm-rest assembly.
4 Open the latch and disconnect the display cable.
5 Note the display cable routing and remove the display cable from the routing
guides on the palm-rest assembly.
