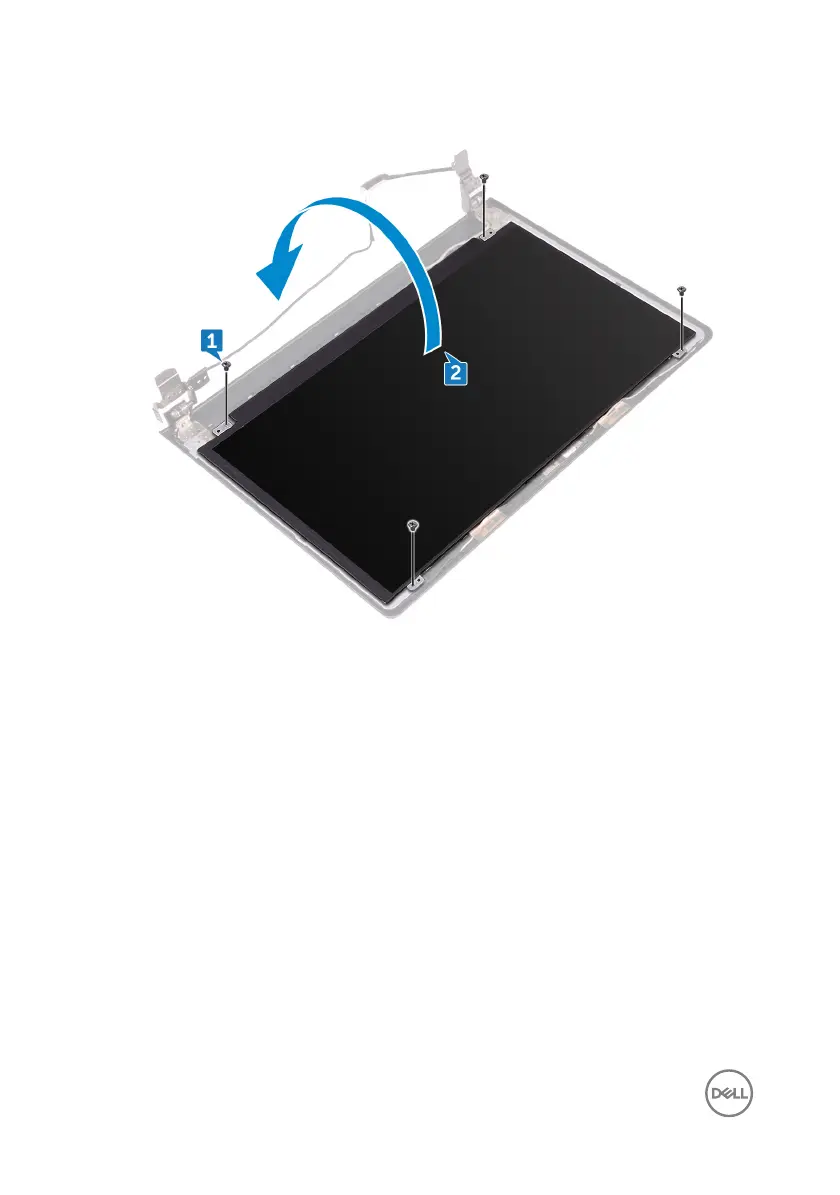

2 Lift the display panel and turn it over.

3 Peel the tape that secures the display cable to the display panel.

4 Open the latch and disconnect the display cable from the display panel.
