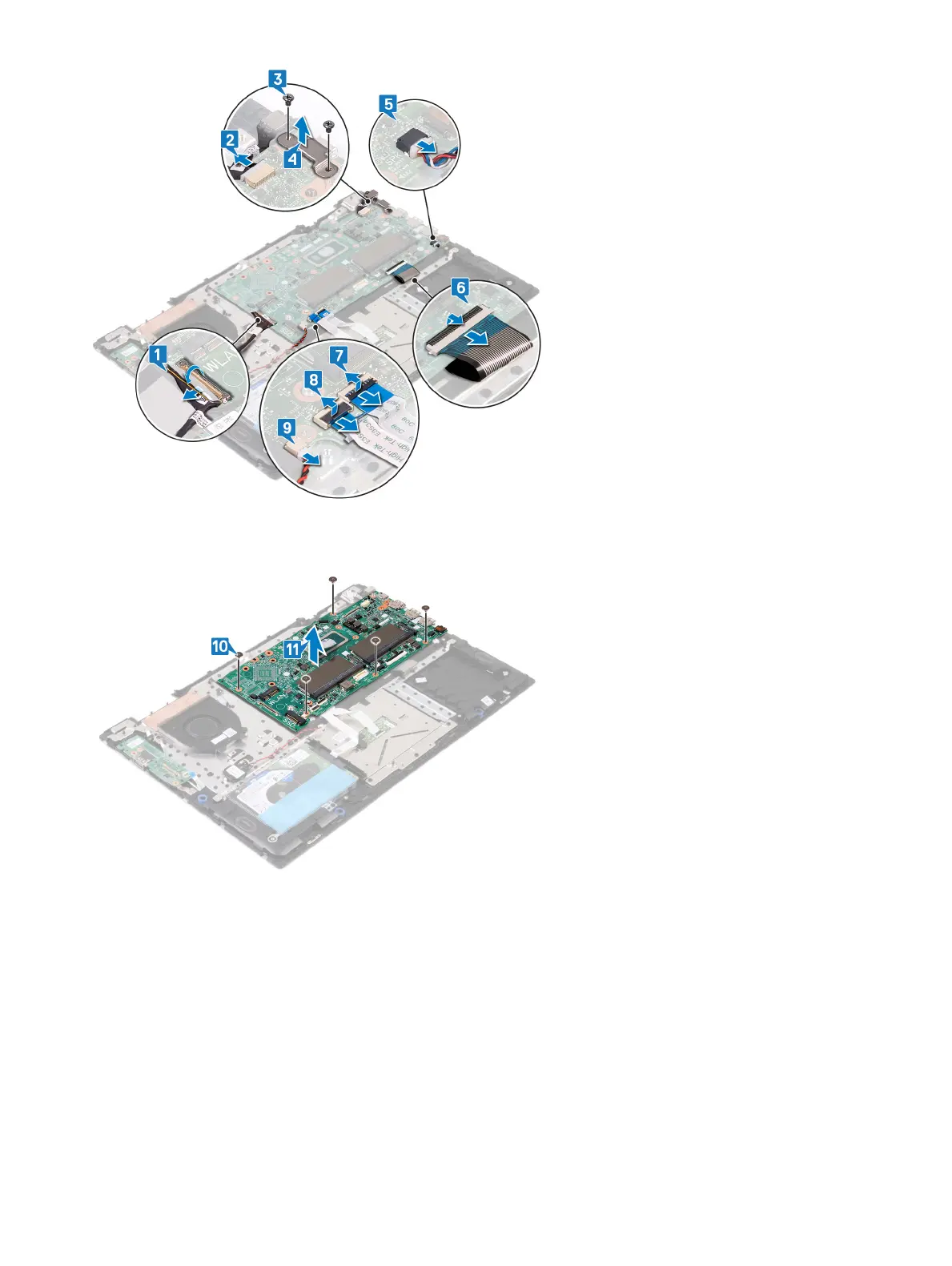

10 Remove the ve screws (M2x2) that secure the system board to the palm-rest and keyboard assembly.

11 Lift the system board o the palm-rest and keyboard assembly.

Removing the system board
