7 Dell PowerConnect 6224 or 6248 | Planning and Preparation Guide | Rapid EqualLogic Configuration Series
3 Connectivity Diagrams
Use the appropriate diagram and corresponding point-to-point table when cabling the SAN.

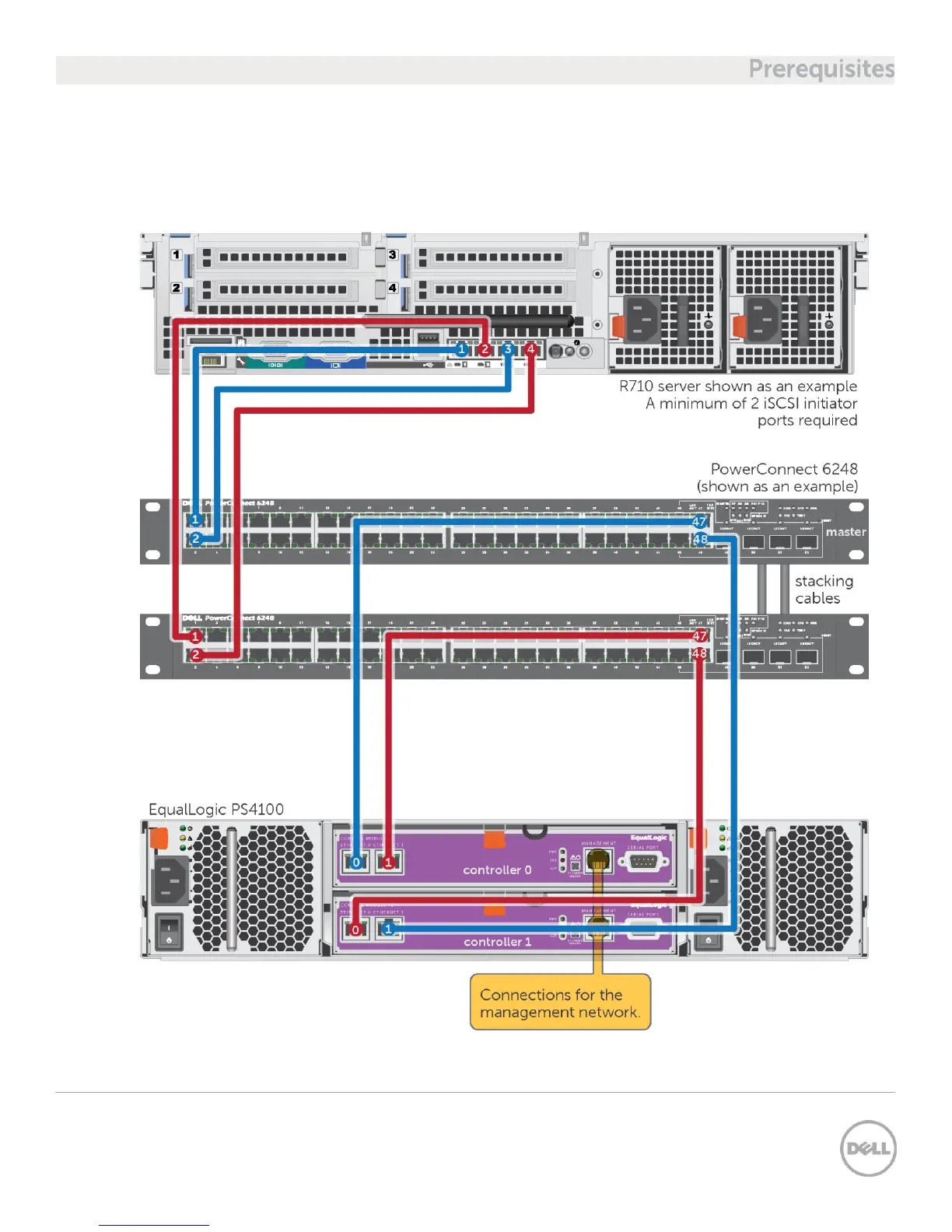

Figure 1 PowerConnect 6224 or 6248 and EqualLogic PS4100
