Configuring DHCPv6 Server and Relay Settings 1099

Prefix Delegation Configuration

Use the Prefix Delegation Configuration

page to configure a delegated prefix

for a pool. At least one pool must be created using DHCPv6 Pool

Configuration before a delegated prefix can be configured.

To display the page, click Routing

→

IPv6

→

DHCPv6

→

Prefix Delegation

Configuration in the navigation panel.

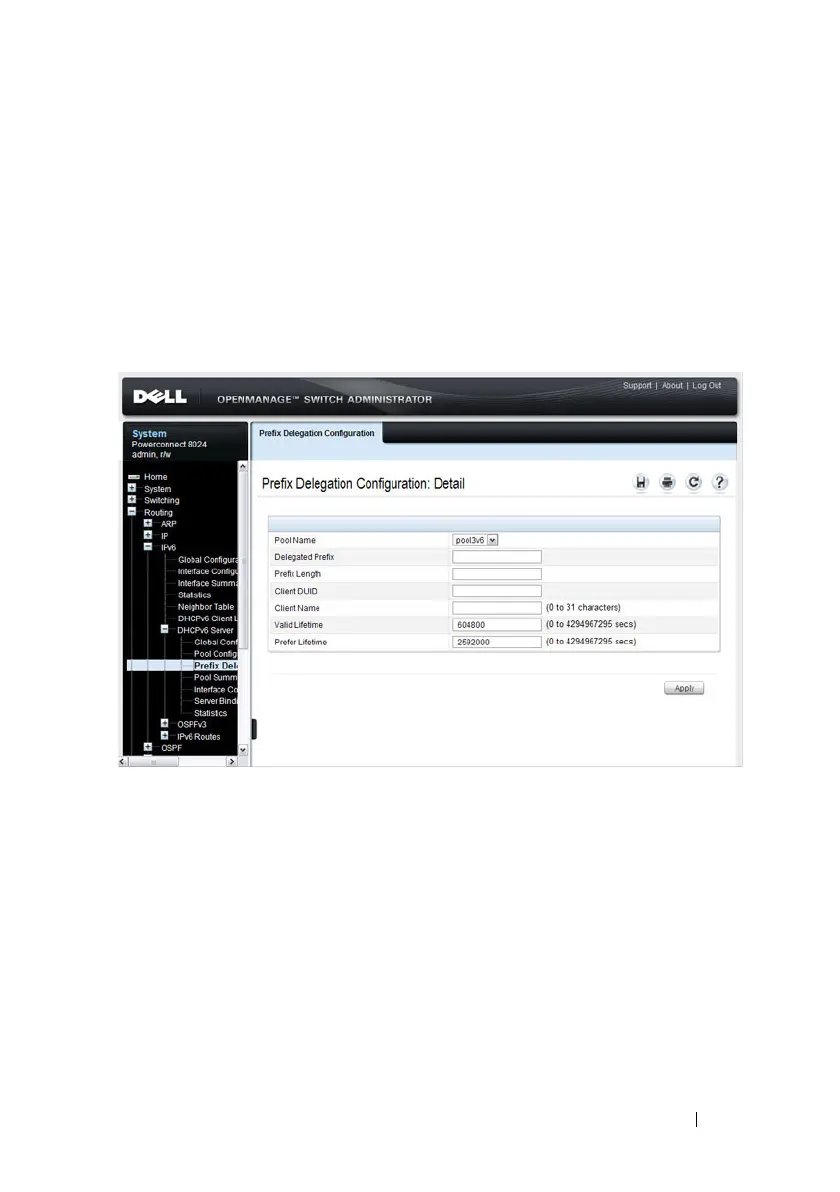

Figure 39-5. Prefix Delegation Configuration
