10 | Getting Started With Your System
7 Slide the system into the rack. See Figure 4.
8 Tighten the thumbscrews to secure the ears of the system to the front of the
rack flanges.

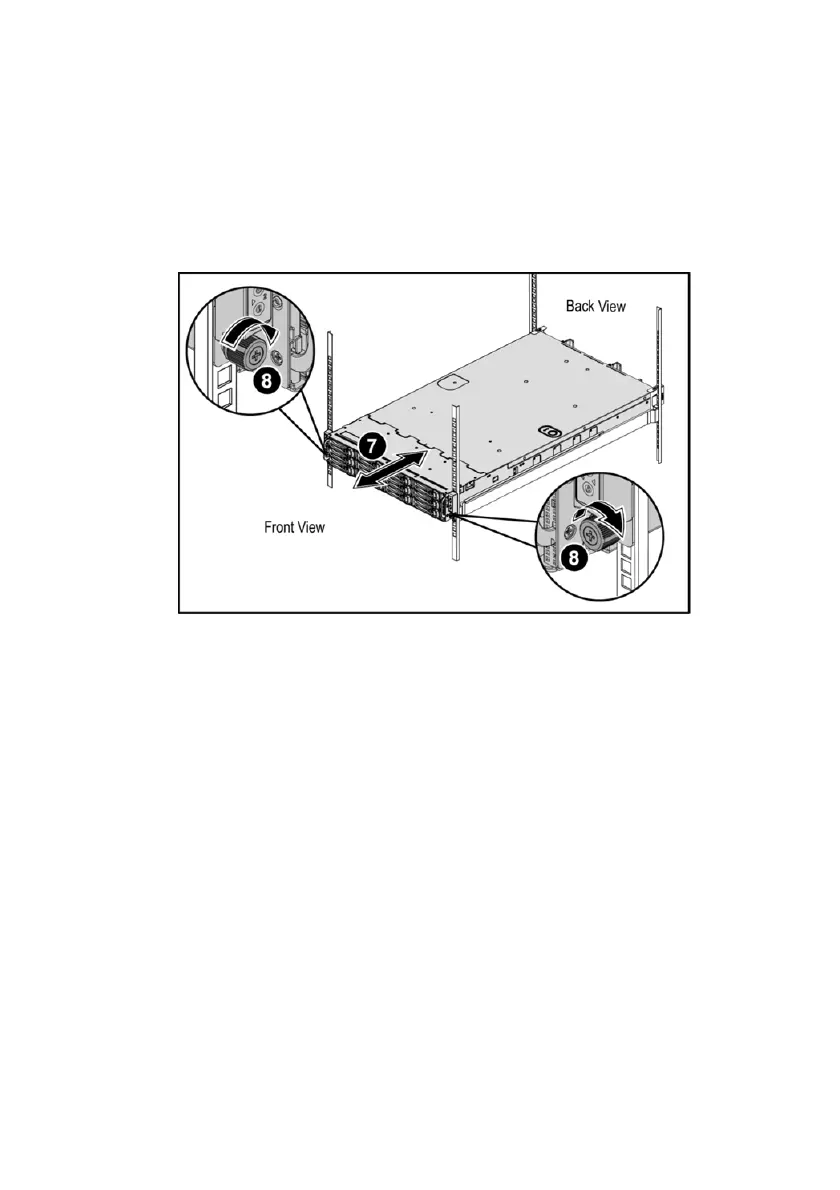

Figure 4. Installing the Chassis onto the Rack.
