Dell PowerEdge E02B - Inside the Sled

Inside the sled

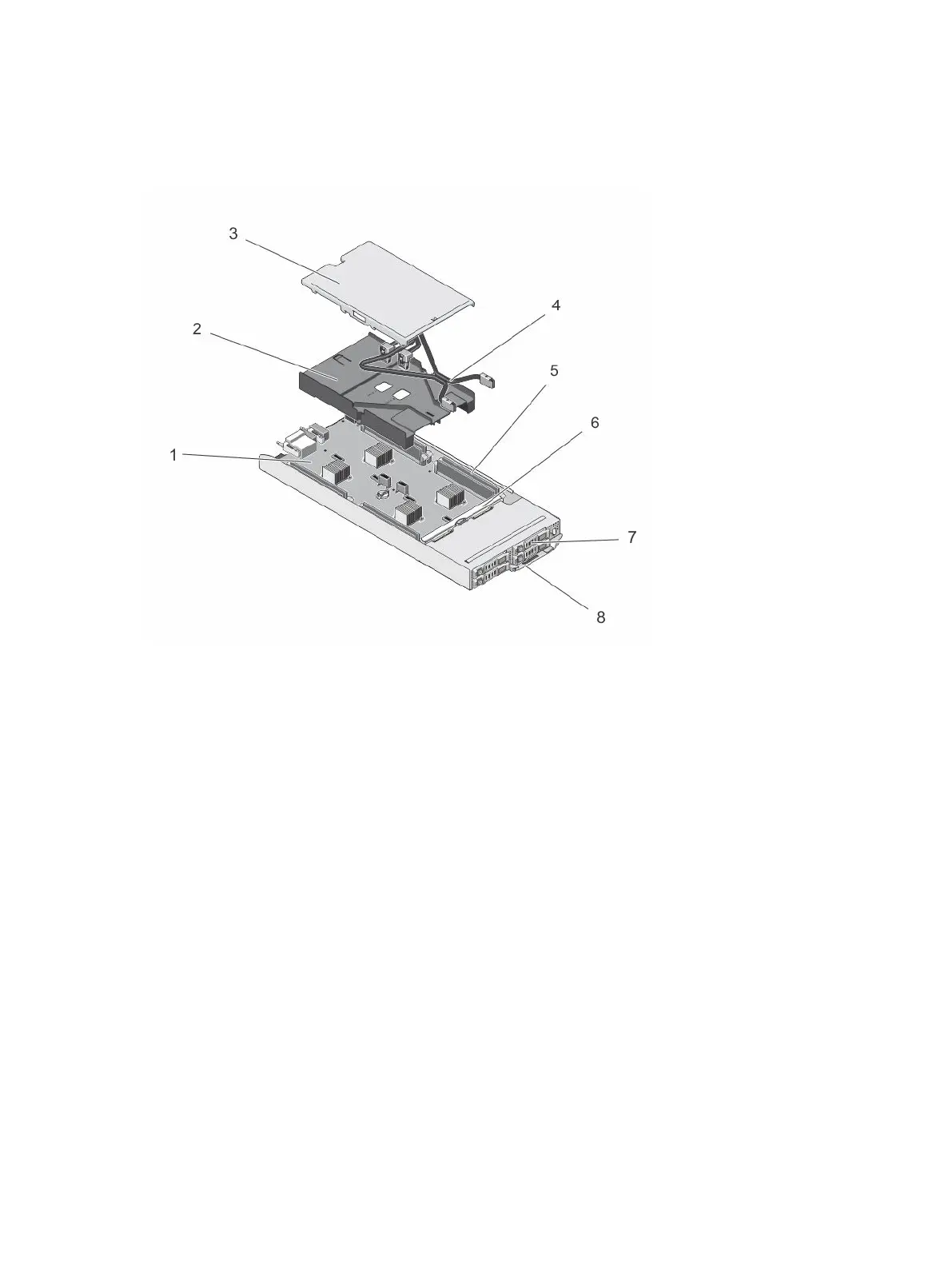

Figure 11. Inside the sled — 2.5 inch hard-drive/SSD system
1. system board 2. cooling shroud
3. cable cover 4. SATA cables (2)
5. DIMMs (8) 6. hard-drive/SSD backplane
7. hard drives/SSDs (4) 8. sled handle
35
