14 PowerEdge FX2 – FN I/O Module – VLT Deployment Guide | Version 2.2
NIC Port 1
NIC Port 2
TEAM
Internal
Connections
Te0/1
Te0/1
Blade Server 1
FN410S-A1
FN410S-A2
PowerEdge FX2
Chassis
Internal interfaces
participating in VLT
VLT member/
interfaces
VLTi / ICL peer link

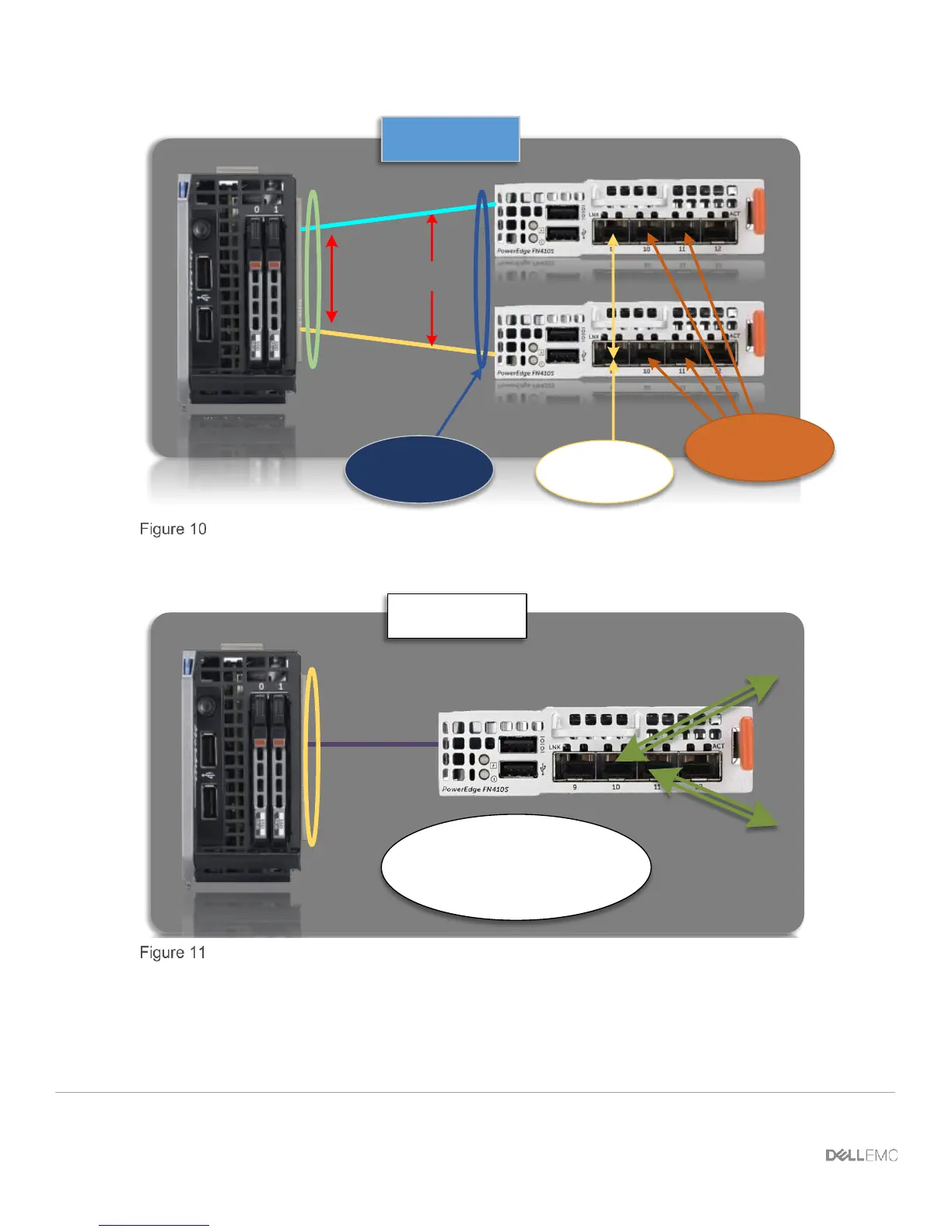

Physical Connectivity in a PowerEdge FX2 Chassis Using IOMs
NIC1
NIC2
TEAM Virtual
Interface
PowerEdge FX2
Chassis
Logical view of Teamed Virtual
Interface connected to two IOMs as
one logical switch
Logical Connectivity in a PowerEdge FX2 Chassis Using IOMs
