77 PowerEdge FX2 – FN I/O Module – VLT Deployment Guide | Version 2.2

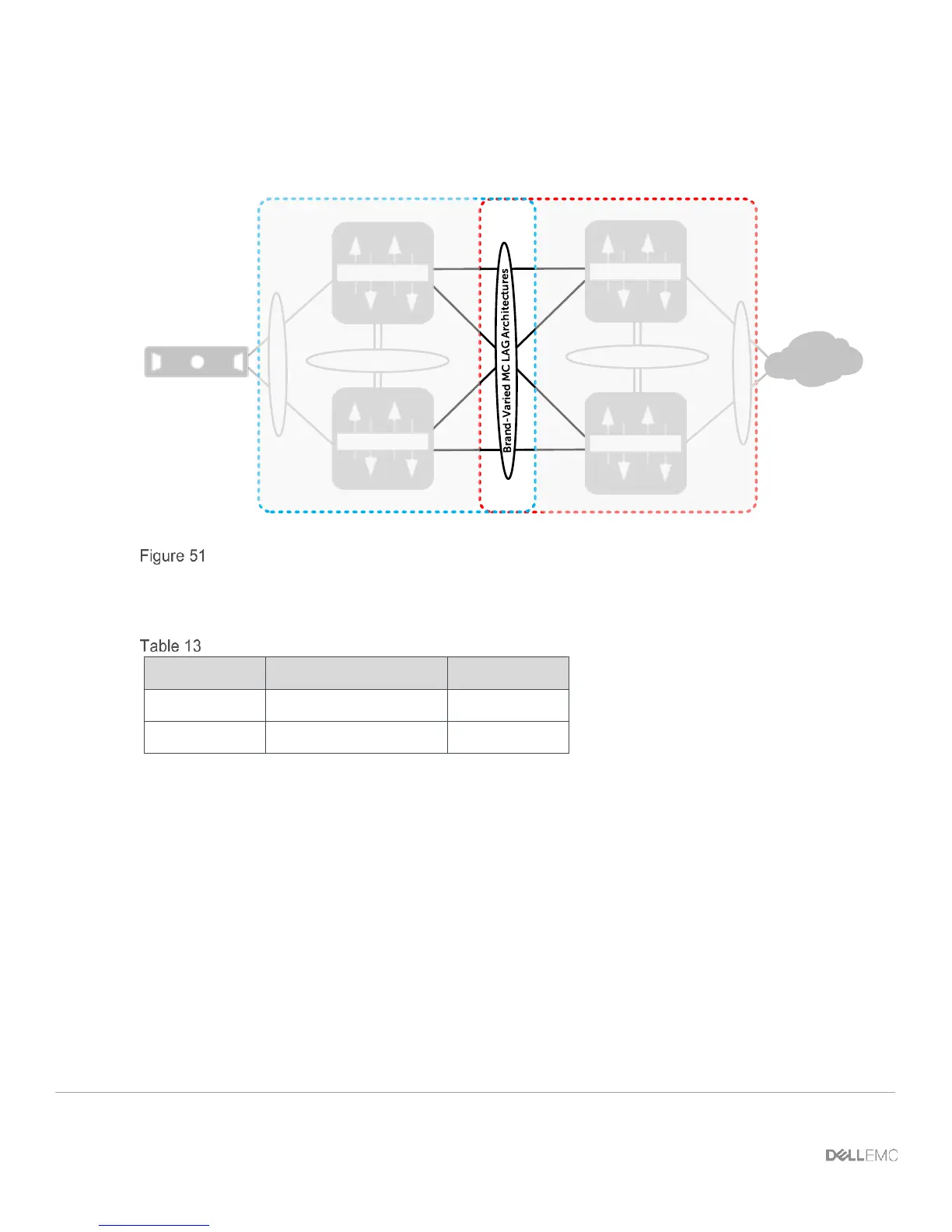

Figure 51 shows that the Dell Networking architecture for mVLT is very similar to this brand-varied
Multi-Chassis Link Aggregation Group (MC-LAG) architecture.
VLT Domain vPC Domain
Peer Link
VLTi
FN IOM
FN IOM
Nexus 5000
Nexus 5000
FC630 Server
Cisco vPC – Dell Networking VLT – multi-vendor same port channels
The configuration steps outlined below are repeated on both Nexus switches. When validating the
configurations in this guide the following management IP addresses (Table 13) were used.
IP Addresses
Hostname
IP Address
Subnet
Nx5672-1
172.25.109.37
255.255.0.0
Nx5672-2
172.25.109.24
255.255.0.0
