81 PowerEdge FX2 – FN I/O Module – VLT Deployment Guide | Version 2.2
Once the vPC domain is created, the vPC Peer-Link is formed using port channel 55. The port channel
connects both vPC peer switches and should be configured to carry all VLANs. Finally, the port
channel is enabled and the vpc peer link command is issued to specify the role of this port
channel in the vPC domain.
VLT Domain vPC Domain
FC630 Server
Peer Link
VLTi
FN410S-A1
FN410S-A2
Nx5672-2
Nx5672-1
E 1/2
E 1/2
E 1/1
E 1/1
E 1/24
E 1/24

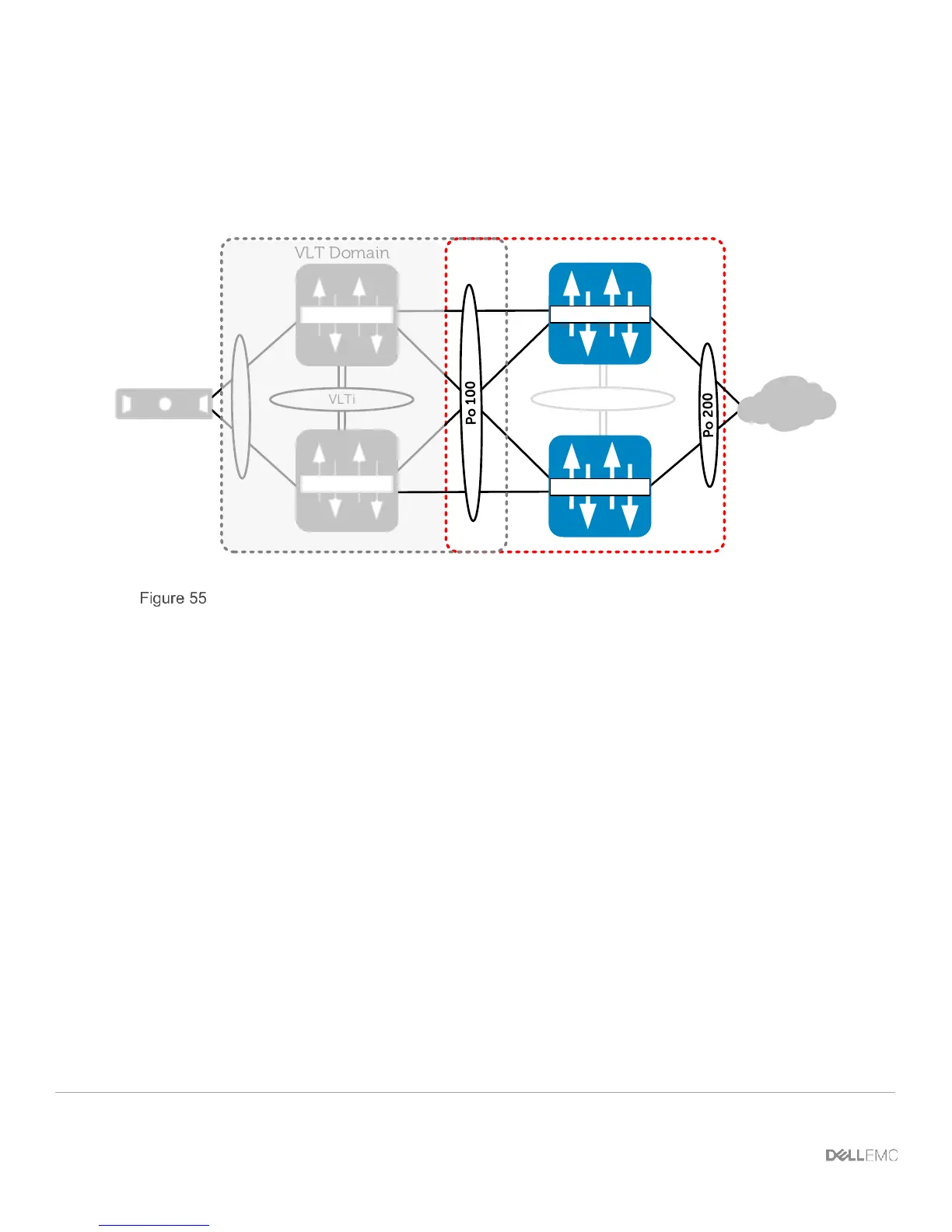

Nexus virtual port channels and vPC member ports
The virtual port channels and vPC member ports are configured for connectivity to the FN IOM’s
(Figure 55).
