FCoE transit
Direct traffic to the Top-of-Rack
via FIP Snooping Bridge
Topology
Fabric Inside Chassis: FCoE
Blade models: MXL, IOA, M8024-k
Top-of-Rack switch: Dell S5000
as well as the Cisco Nexus 5000
Configuration
• All FCoE traffic moves from the
adapters, to the IOM, then to
the Top-of-Rack switch
• FC is broken out at the Top-of-
Rack switch and moves to the
SAN or directly to the storage
array
Topology / Configuration

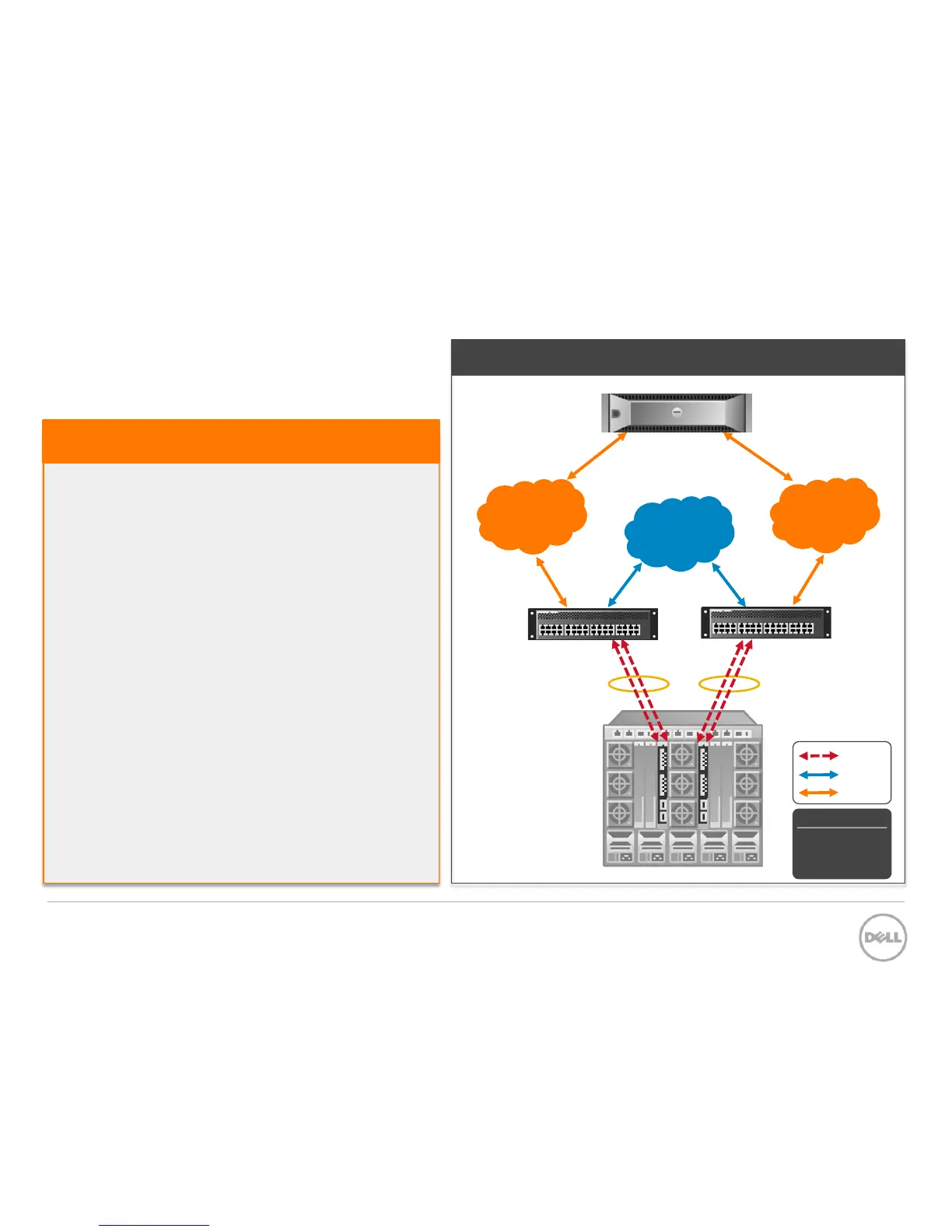

Topology Diagram
LAG
LAG
SAN A
LAN
SAN B
FCoE
LAN
FC
Inside Chassis
FCoE from
Adapter to
Blade Switch
