Dell PowerEdge M1000e - Page 46

Fibre Channel Breakout at Edge of Chassis
Topology
Fabric Inside Chassis: FCoE
Blade model: MXL, IOA, M8428-k
Top-of-Rack switch: Dell S5000,
S4810, S4820T
Configuration
FCoE inside chassis (from adapter
to blade switch) and Native FC
outside the chassis
Topology / Configuration

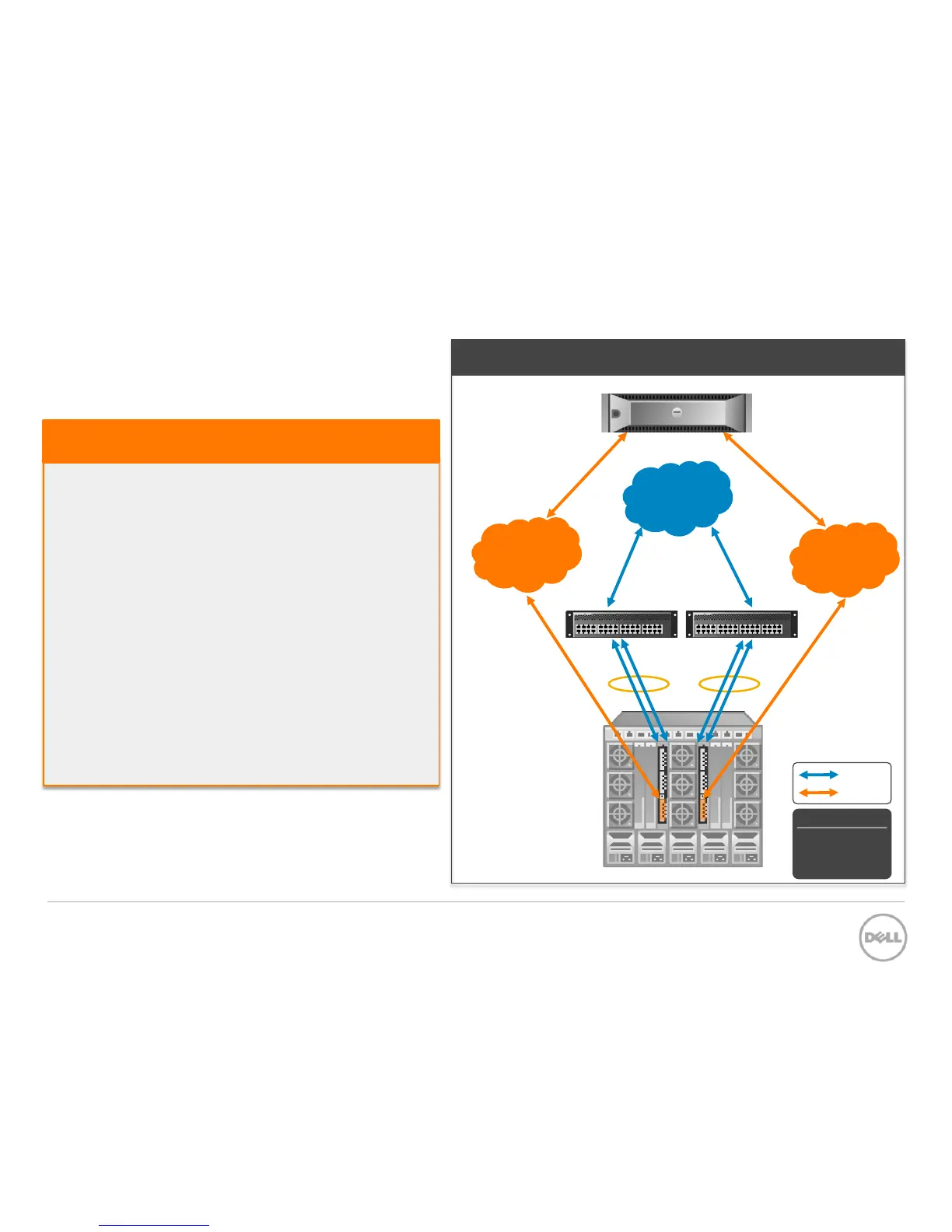

Topology Diagram
LAG LAG
LAN
SAN A
LAN
SAN B
Inside Chassis
FCoE from
Adapter to
Blade Switch
LAN
FC
46
Dell M-Series Blade I/O Guide
