Storage Blade with Optional External Array
Topology
Fabric Inside Chassis: Converged iSCSI
Blade model: MXL, IOA
Top-of-Rack switch: S5000, S4810,
S4820T
Storage: PS4410 storage blade
Optional Storage: EqualLogic External
Array
Configuration
• Converged iSCSI to the blades and
up to the Top-of-Rack switch
• Blade IOMs are using VLT so that
array to array traffic can stay inside
the M1000e chassis
Topology / Configuration

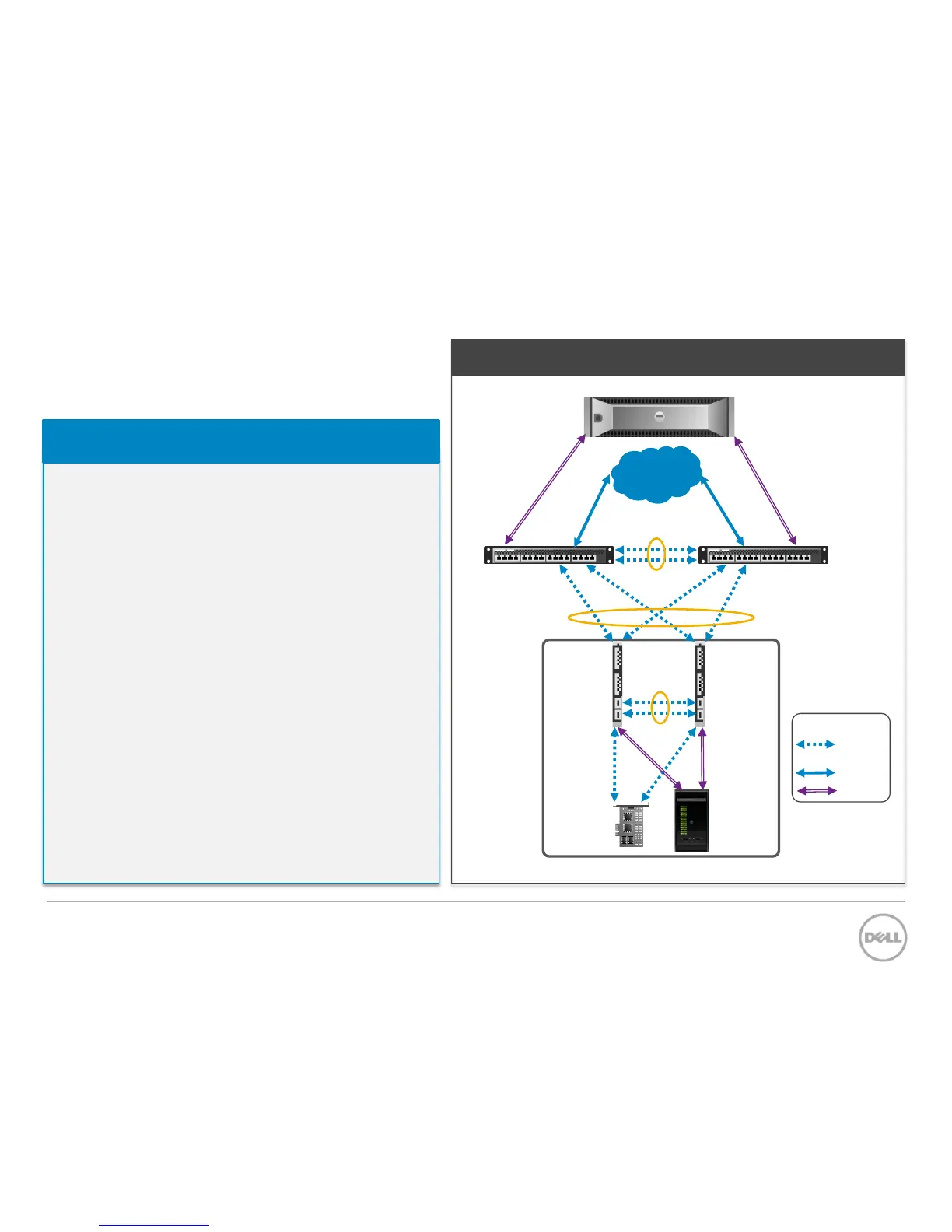

Topology Diagram
LAG
M1000e chassis
VLT
Dual Port
Adapter
Storage
Blade
VLT
LAN
iSCSI
& LAN
LAN
iSCSI
