Installing System Components 103

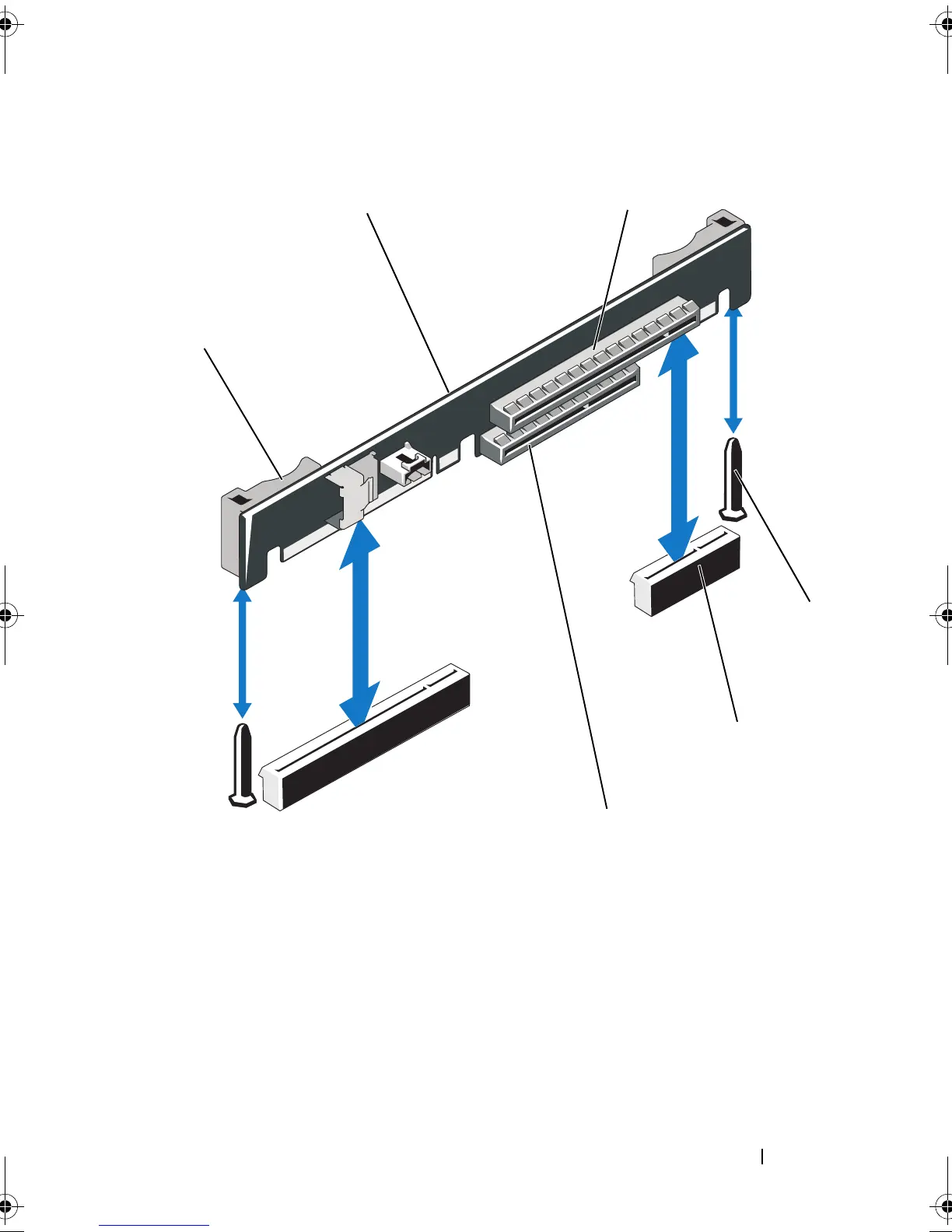

Figure 3-13. Installing or Removing an Expansion-Card Riser
Replacing an Expansion-Card Riser
1
To install an expansion-card riser, align the riser guide posts with the riser
guide posts on the system board. See Figure 3-13.
2
Lower the expansion-card riser into place until the expansion-card riser
connector is fully seated.
1 riser guides (2) 2 expansion-card riser
3 expansion card slot 4 riser guide posts (2)
5 expansion-card riser socket (2) 6 integrated storage controller slot
5
1
2
3
4
6
book.book Page 103 Tuesday, March 31, 2009 5:26 PM
