108 Installing System Components

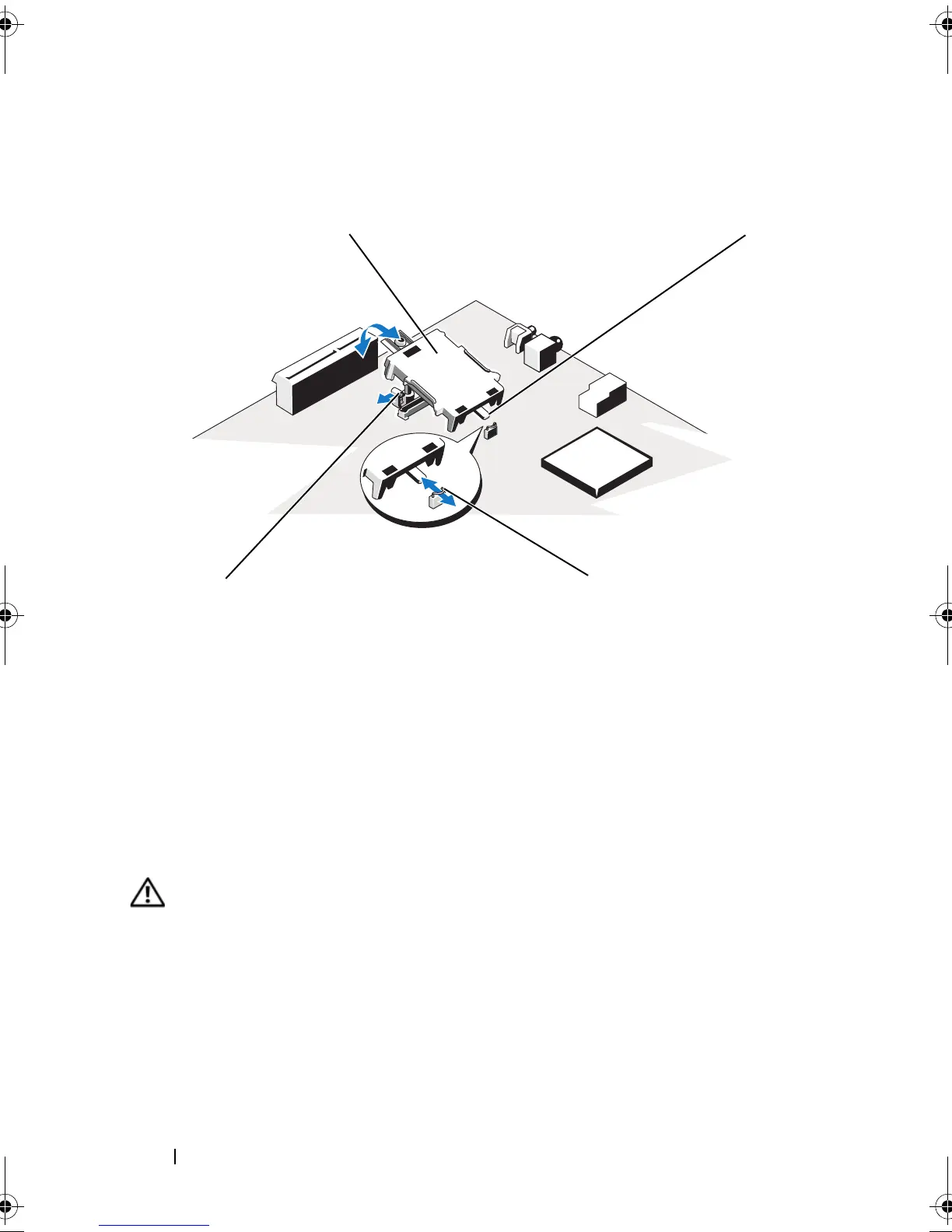

Figure 3-16. Installing or Removing an iDRAC6 Express Card (Optional)
4
Close the system. See "Closing the System" on page 83.
5
Reconnect the system and peripherals to their power sources, and turn
them on.
Removing an iDRAC6 Express Card (Optional)
WARNING: Only trained service technicians are authorized to remove the system
cover and access any of the components inside the system. Before you begin this
procedure, review the safety instructions that came with the system.
1
Turn off the system, including any attached peripherals, and disconnect
the system from the electrical outlet.
2
Open the system. See "Opening the System" on page 82.
1
iDRAC6 Express card
2
notch
3 clip 4
plastic standoff tab
1
2
3
4
