11 Storage
11.1 Overview
There are two types of chassis for R510.
• 4 Hard Drive Chassis: x cabled 3.5” HDD (cabled HDD carrier, identical to R410 cabled HDD carrier),
support one slim optical disk drive (ODD)
• 8 Hard Drive Chassis: 8 x hot-swap 3.5” or 2.5” HDD (in hard drive carrier), support one slim ODD
11.2 Drives
Refer to Table 2 for more information on available drives.

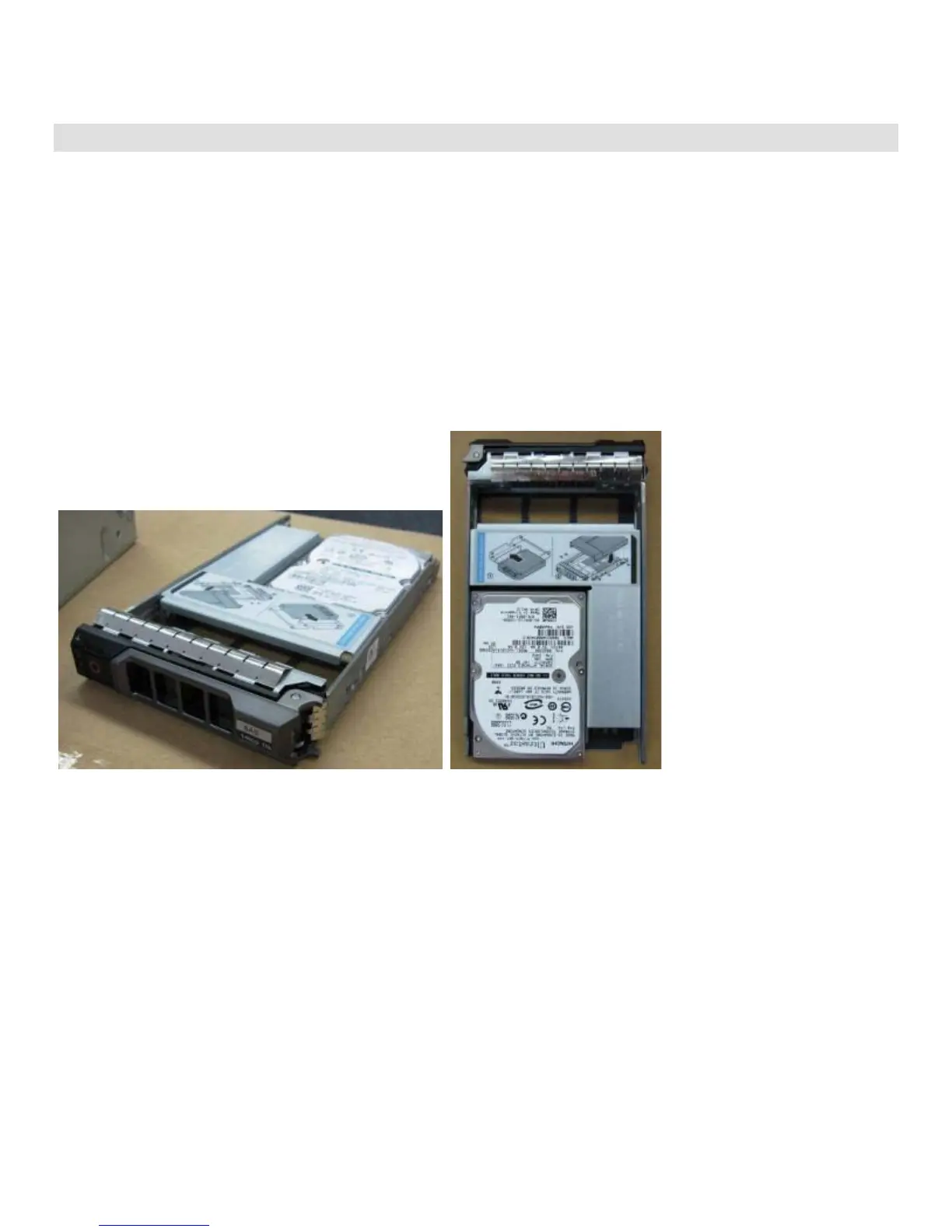

Figure 33. 2.5” Drive in Hard Drive Carrier
