134 Installing System Components

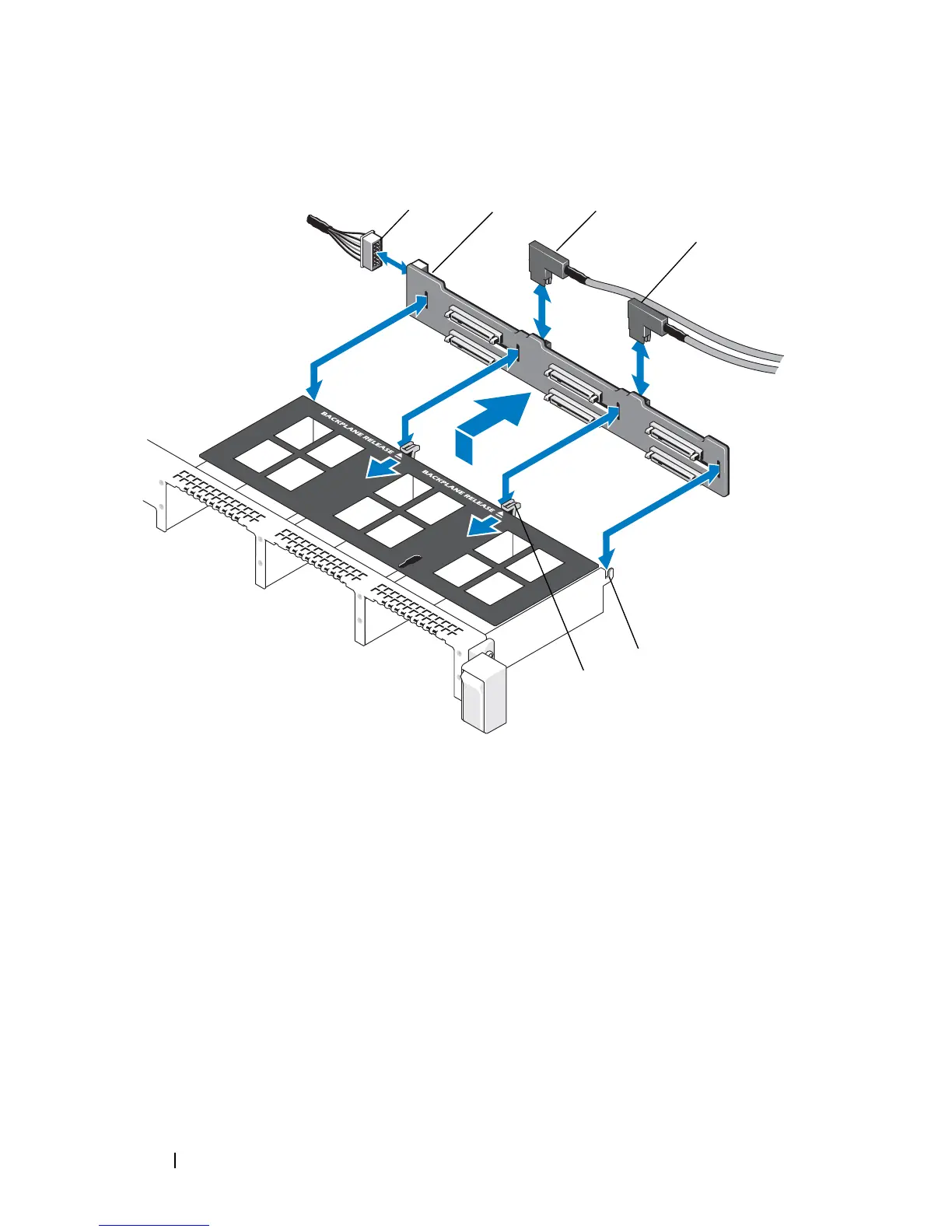

Figure 3-23. Removing and Installing a SAS Backplane
1 SAS backplane power cable 2 SAS backplane
3 SAS A cable 4 SAS B cable
5 retention hooks (2) 6 backplane retention latches (2)
6
5
1
2
3
4
