178 Jumpers and Connectors

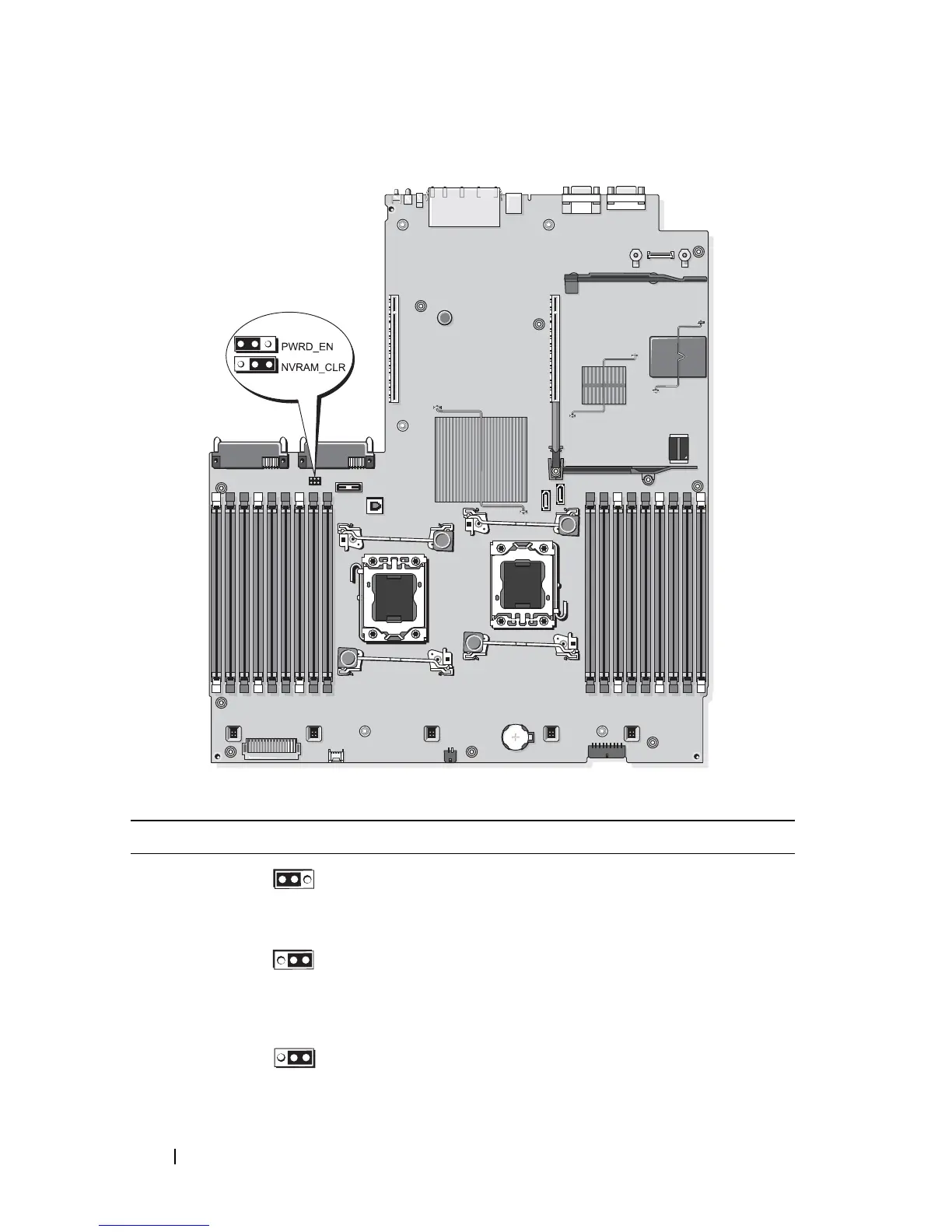

Figure 6-1. System Board Jumpers
Jumper Setting Description
PWRD_EN Pins 2 and 4
(default)
The password feature is enabled.
Pins 4 and 6 The password feature is disabled and
iDRAC6 local access is unlocked at the next
AC power cycle.
NVRAM_CLR Pins 3 and 5
(default)
The configuration settings are retained at
system boot.
